6 seater utility golf cart Z4C silvery
    Publish time 2022-11-12 10:24

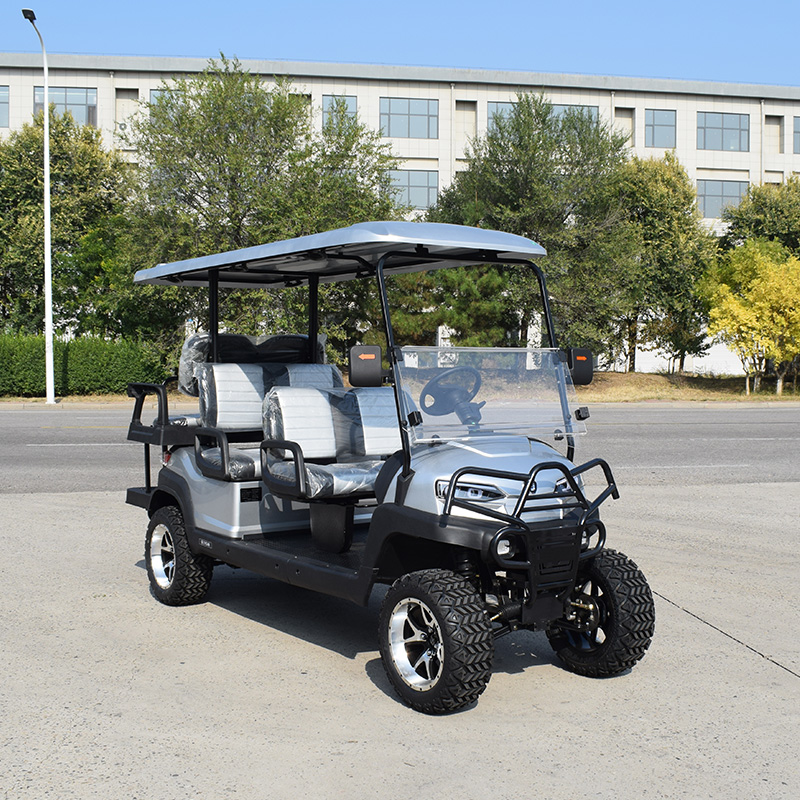

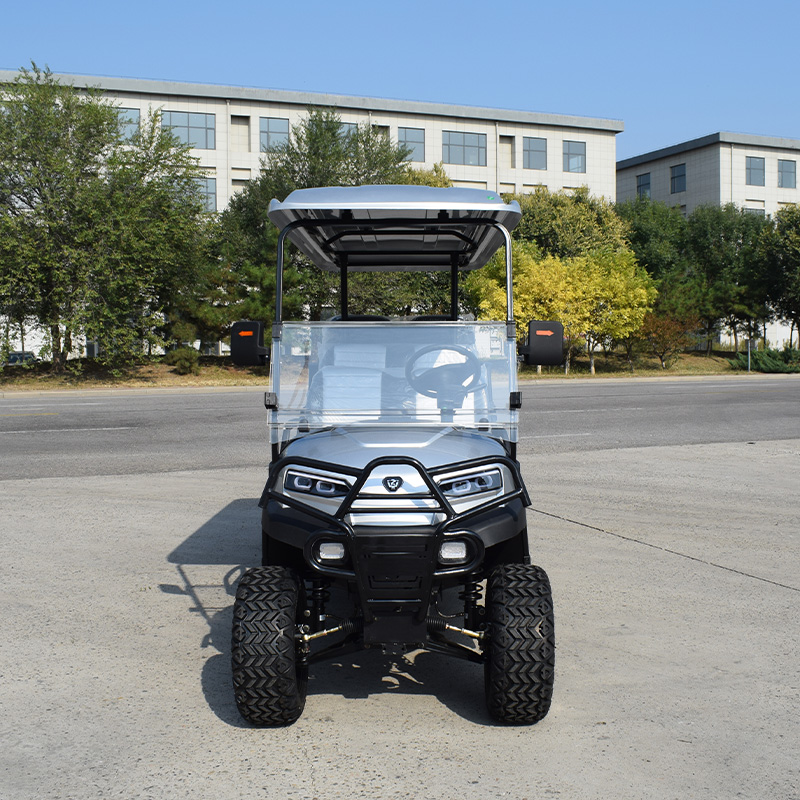

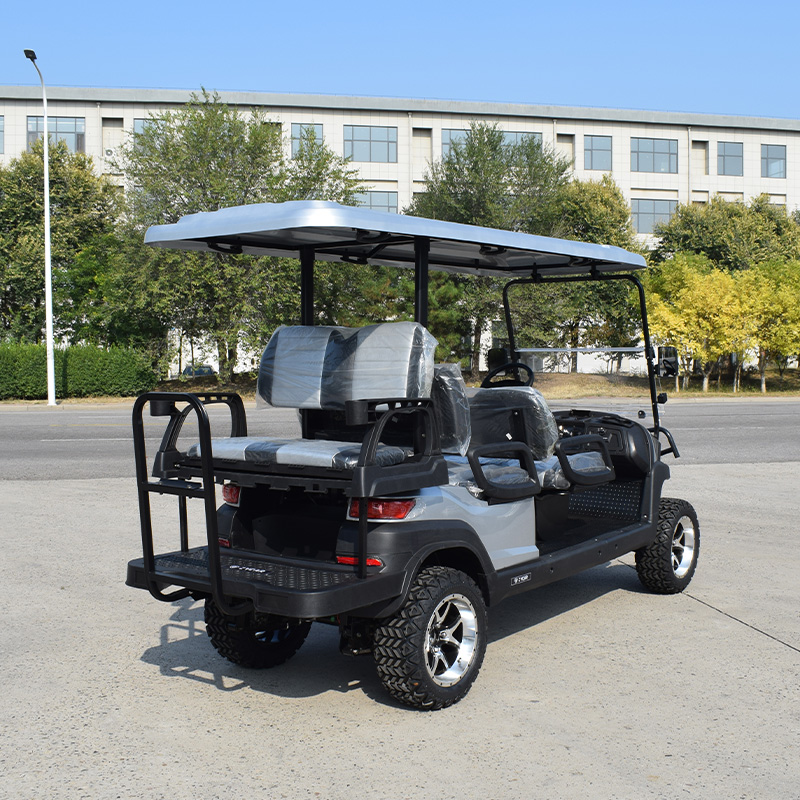

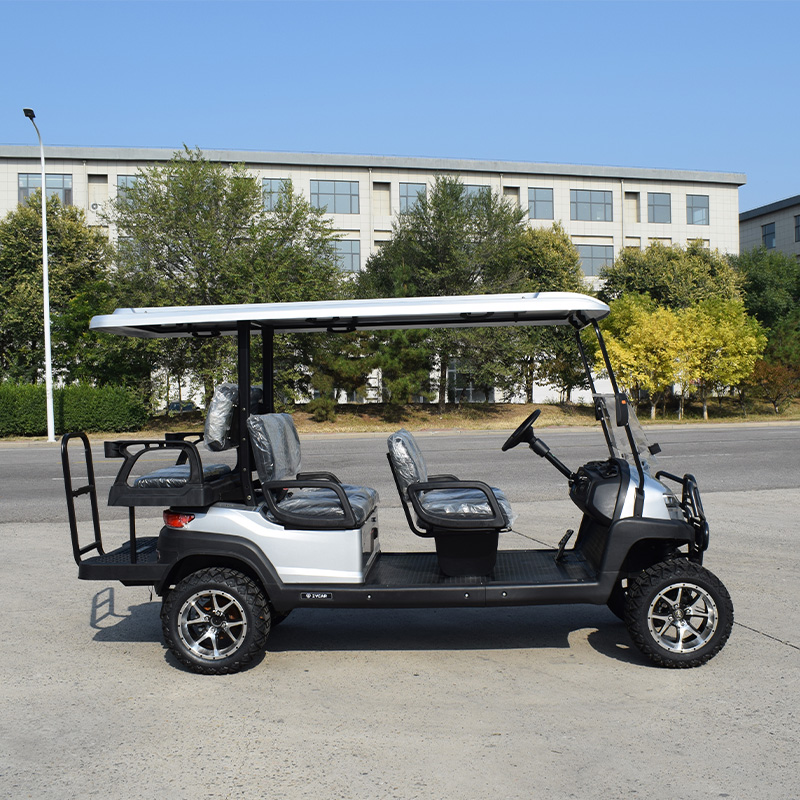

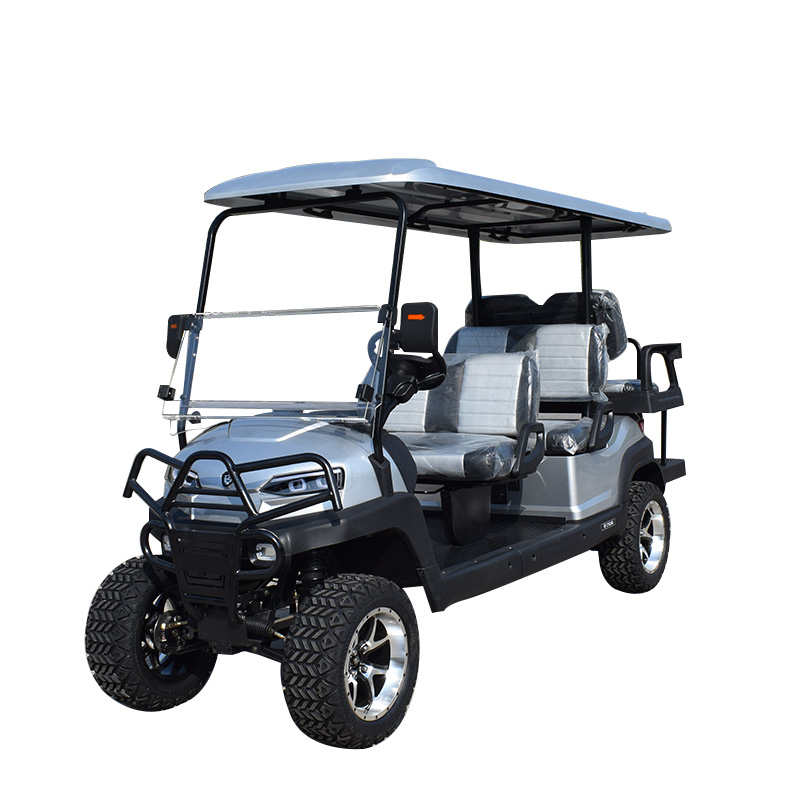

6 seater utility golf cart Z4C silvery
4 + 2 Seats Utilty Golf Cart
ModelZ4C
System48V 5KW AC system
Key Components
BatteryZhongyi Huge capacity deep cycle lead-acid battery  6*8V 140AH
MotorZhongyi Brand 5KW AC motor
ControllerAC Controller (48V 400A)
ChargerOn board Input 220V/110V、output 48V、25A
Performance
Passenger capacity6
Range (loaded) based on flat road at a speed of 20km/h70-90km
Max. speed35kmh
Minimum turning radius4m
Max. climbing ability20%
Break Distance<5M
Cart's weight(with batteries)670 kgs
Dimensions
Overall dimensions:LWH (mm)3720×1210×1945mm
front /rear wheel distance  (mm)front 880mm/ rear 998mm
Wheelbase(mm)2530mm
Detailed Configurations('S' for Standard; 'O' for Option)
Body and Frame
ChassisWelded high yield strength tubular steel with pickling and phosphating electrophoresis processS
Body &RoofInjection molding modeling design separable replacementS
Support framethe front  steel ,the rear  aluminumS
SeatsLuxurious seats made of  sponge&artificial LeatherS
Front seatFront row sliding seats.   Comfort design for different body size.S
Foldable rear seatwith cup holders and storage box underneath the seatS
DashboardWater transfer printing , carbon fiber style,plastic molding instrument board electric key switch,lockable storage box, cup holder,professional combination meter with turn signal indicator, speed indicator and mileage,forward and Revise indicator. 2xUSB charger port.S
Front guard bar
O
Safety BeltsTwo-point beltS
Reviewer mirroswith light directionS
WindshieldFolded Windshield(organic glass)O
Ice box(with box holder)
O
Body cover
O
Rain cover
O
Sunshine Curtain6 pcs in a whole cartO
Electric System
Lighting systemAll LED lights:  Front High/Low beam with lens; Front and Rear Flowing water turn signal light; Daytime running lightS
Round LCD digital instrumentCAN communication to the controller,
High accuracy speed meter KPH/MPH, ODO,SOC.
Multi-page display with controller diagnostic information.
S
9 inch screenWith blooth radio entertainment system and reversing cameraO
Solar PanelOne piece 200W Solar Panel(1.22m x0.92m)O
Steering and Suspension System
Steering systemDual automotive-style strut and self-adjust rack-and pinion
steering
S
Brake systemDual rear wheel mechanical drum brakes ,self-adjusting with non-asbestos liningsS
Four Wheels Hydraulic Disc Break,front disc brake and rear disc break+electrical magnetic brake   O
Accelerator and break pedalall aluminum new designS
Suspension systemFront mcpherson independent suspension, Spiral spring + cylinder hydraulic shock absorption ; Integral rear axle, leaf spring + cylinder hydraulic shock absorptionS
wheel & TyreAluminum hub 205/50-10S
