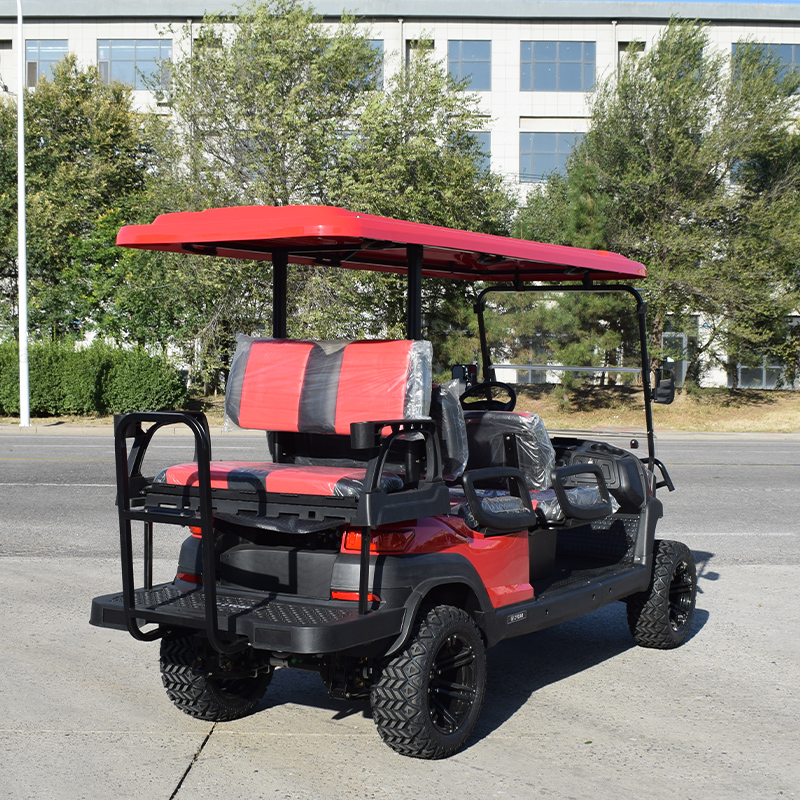

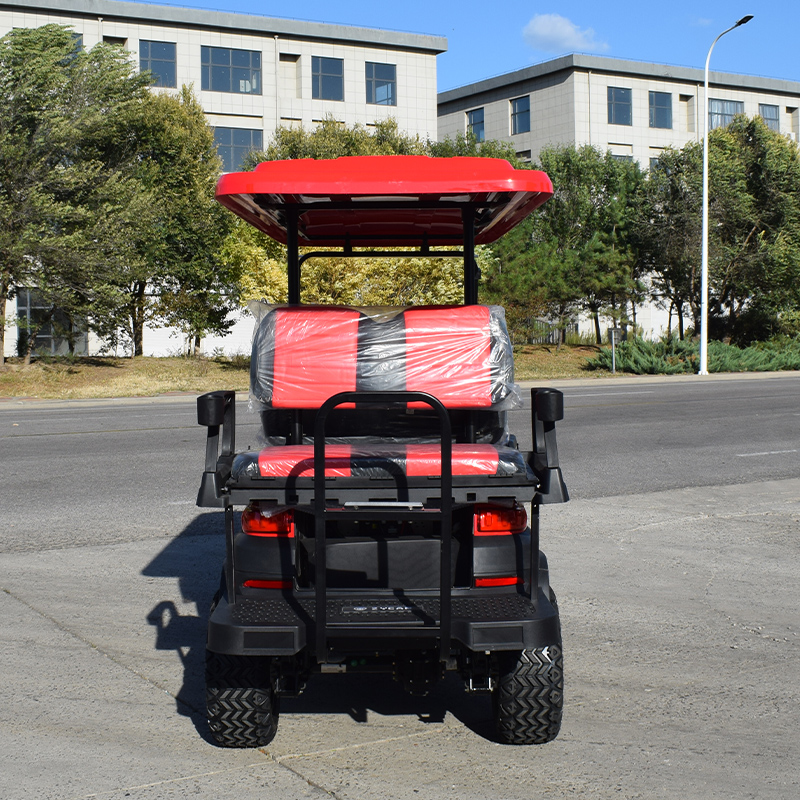

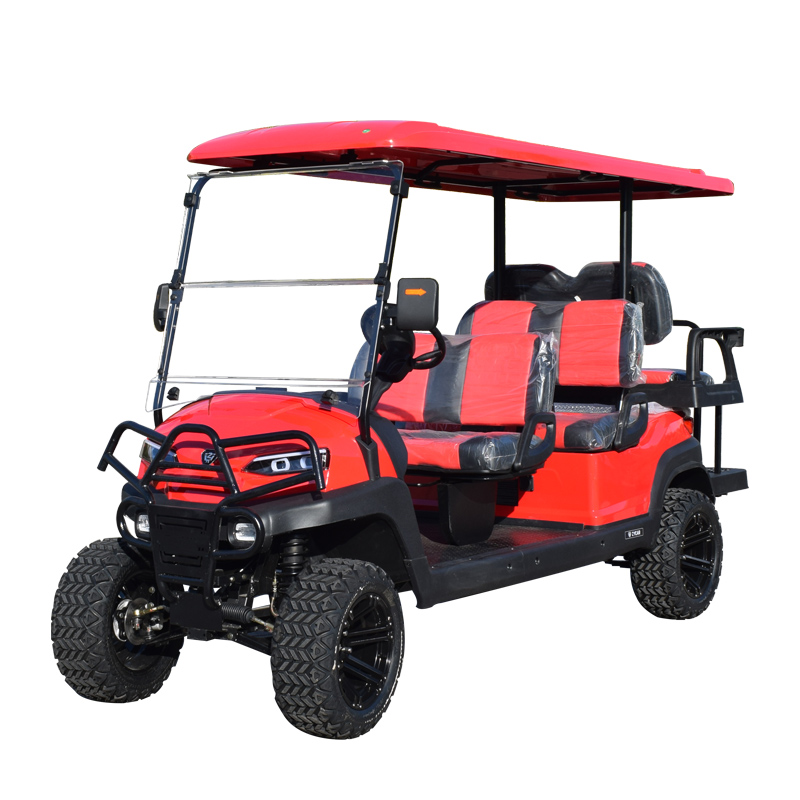

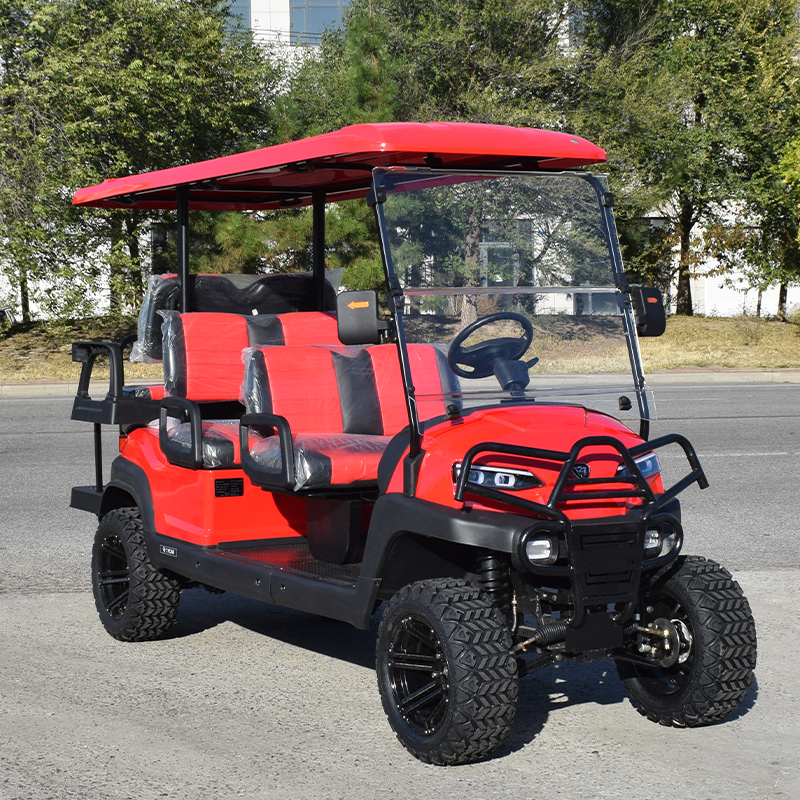

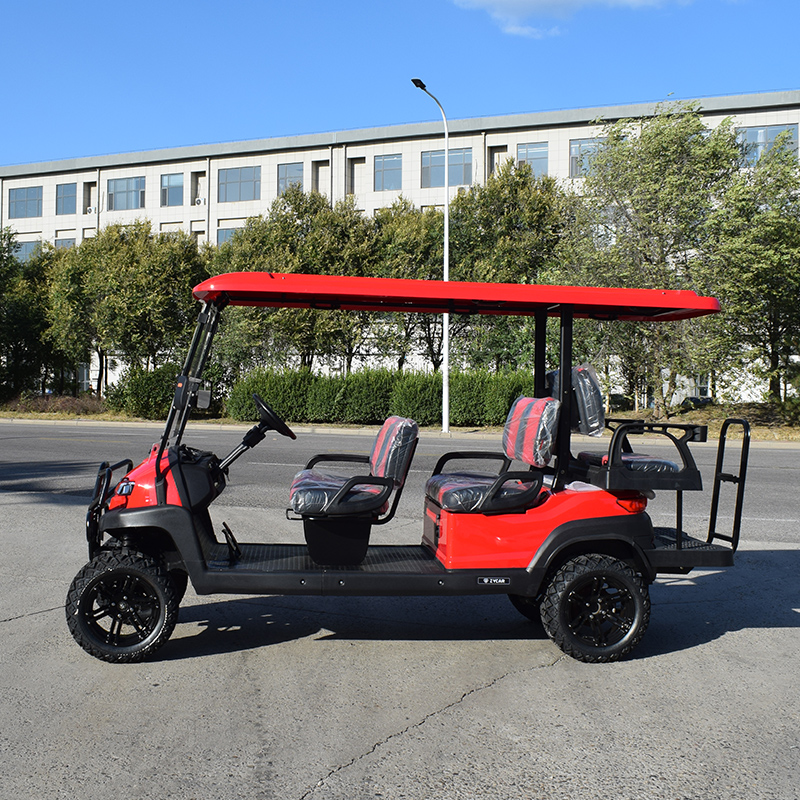

| 4 + 2 Seats Utilty Golf Cart |
| Model | Z4C |
| System | 48V 5KW AC system |
| Key Components |
| Battery | Zhongyi Huge capacity deep cycle lead-acid battery 6*8V 140AH |
| Motor | Zhongyi Brand 5KW AC motor |
| Controller | AC Controller (48V 400A) |
| Charger | On board Input 220V/110V、output 48V、25A |
| Performance |
| Passenger capacity | 6 |
| Range (loaded) based on flat road at a speed of 20km/h | 70-90km |
| Max. speed | 35kmh |
| Minimum turning radius | 4m |
| Max. climbing ability | 20% |
| Break Distance | <5M |
| Cart's weight(with batteries) | 670 kgs |
| Dimensions |
| Overall dimensions:LWH (mm) | 3720×1210×1945mm |
| front /rear wheel distance (mm) | front 880mm/ rear 998mm |
| Wheelbase(mm) | 2530mm |
| Detailed Configurations('S' for Standard; 'O' for Option) |
| Body and Frame |
Chassis
| Welded high yield strength tubular steel with pickling and phosphating electrophoresis process | S |
| Body &Roof | Injection molding modeling design separable replacement | S |
| Support frame | the front steel ,the rear aluminum | S |
| Seats | Luxurious seats made of sponge&artificial Leather | S |
| Front seat | Front row sliding seats. Comfort design for different body size. | S |
| Foldable rear seat | with cup holders and storage box underneath the seat | S |
| Dashboard | Water transfer printing , carbon fiber style，plastic molding instrument board electric key switch,lockable storage box, cup holder,professional combination meter with turn signal indicator, speed indicator and mileage,forward and Revise indicator. 2xUSB charger port. | S |
| Front guard bar |
| O |
| Safety Belts | Two-point belt | S |
| Reviewer mirros | with light direction | S |
| Windshield | Folded Windshield(organic glass) | O |
| Ice box(with box holder) |
| O |
| Body cover |
| O |
| Rain cover |
| O |
| Sunshine Curtain | 6 pcs in a whole cart | O |
| Electric System |
| Lighting system | All LED lights: Front High/Low beam with lens; Front and Rear Flowing water turn signal light; Daytime running light | S |
| Round LCD digital instrument | CAN communication to the controller,
High accuracy speed meter KPH/MPH, ODO,SOC.
Multi-page display with controller diagnostic information. | S |
| 9 inch screen | With blooth radio entertainment system and reversing camera | O |
| Solar Panel | One piece 200W Solar Panel(1.22m x0.92m) | O |
| Steering and Suspension System |
| Steering system | Dual automotive-style strut and self-adjust rack-and pinion
steering | S |
| Brake system | Dual rear wheel mechanical drum brakes ,self-adjusting with non-asbestos linings | S |
| Four Wheels Hydraulic Disc Break,front disc brake and rear disc break+electrical magnetic brake | O |
| Accelerator and break pedal | all aluminum new design | S |
| Suspension system | Front mcpherson independent suspension, Spiral spring + cylinder hydraulic shock absorption ; Integral rear axle, leaf spring + cylinder hydraulic shock absorption | S |
| wheel & Tyre | Aluminum hub 205/50-10 | S |
