4 seater golf cart Z4 silvery
    Publish time 2023-06-15 13:29

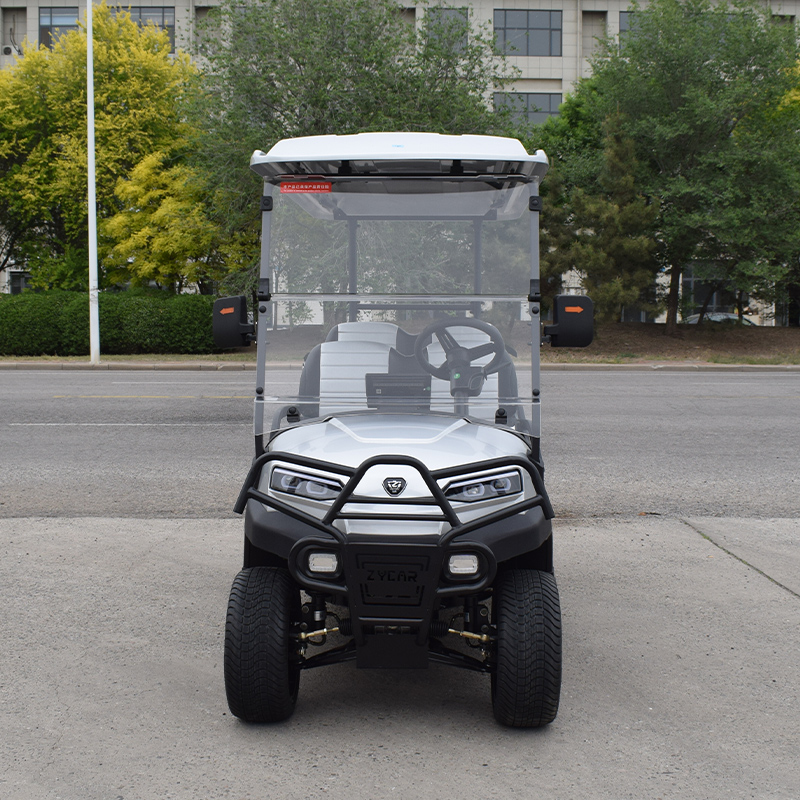

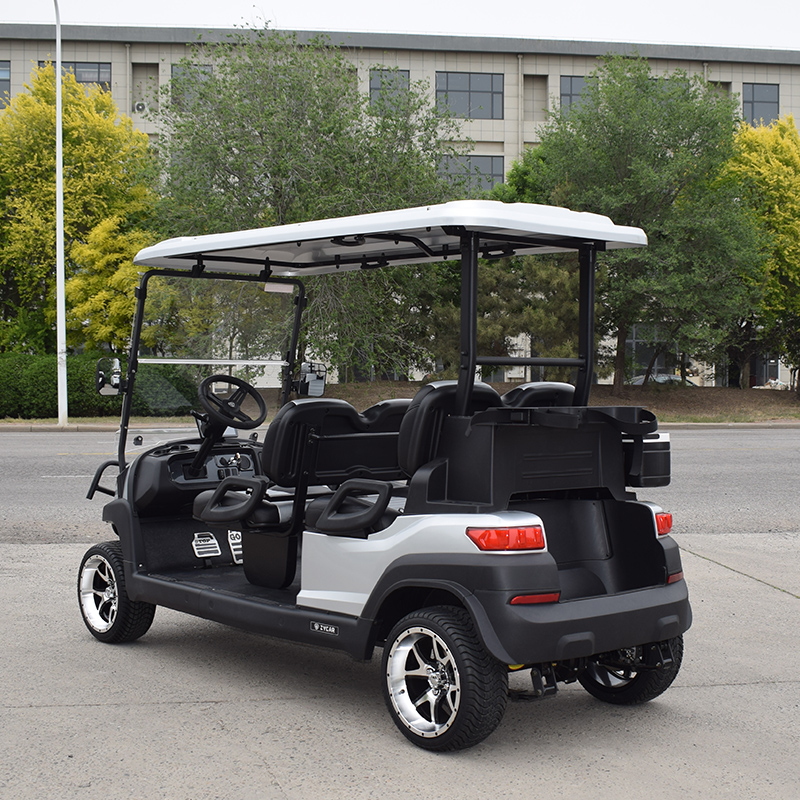

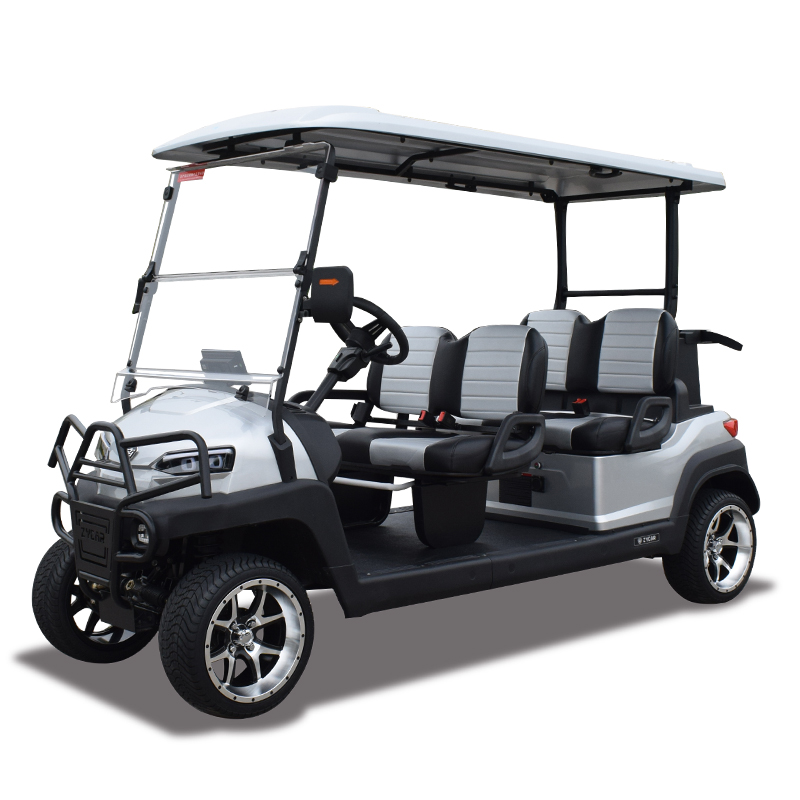

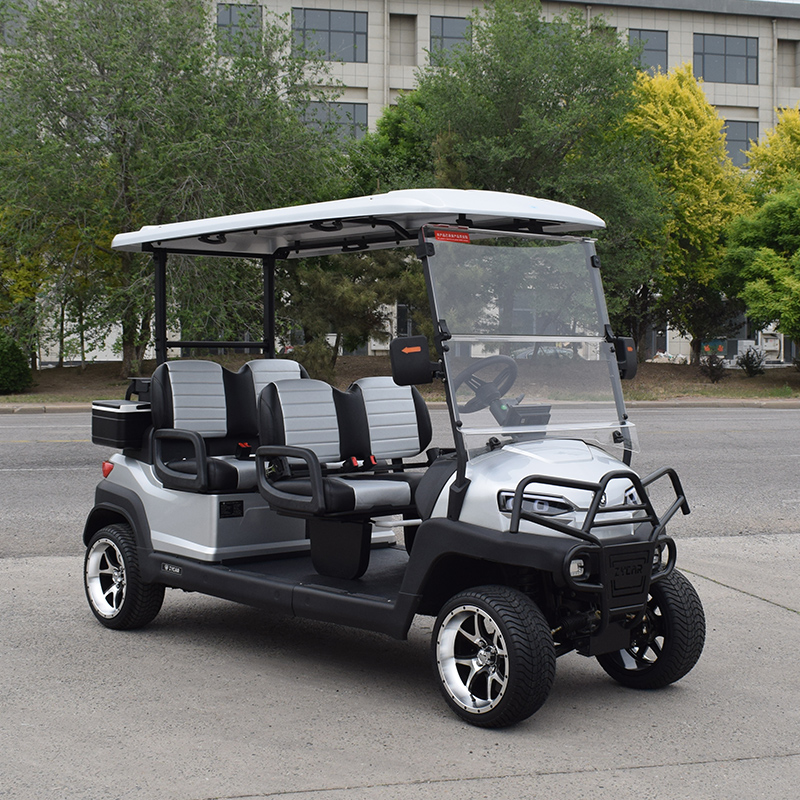

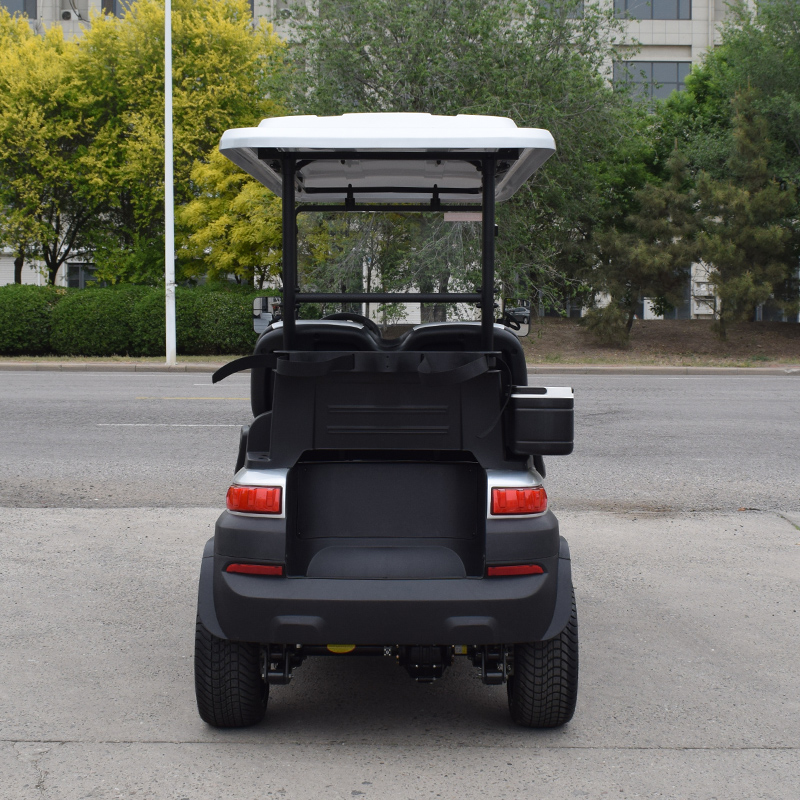

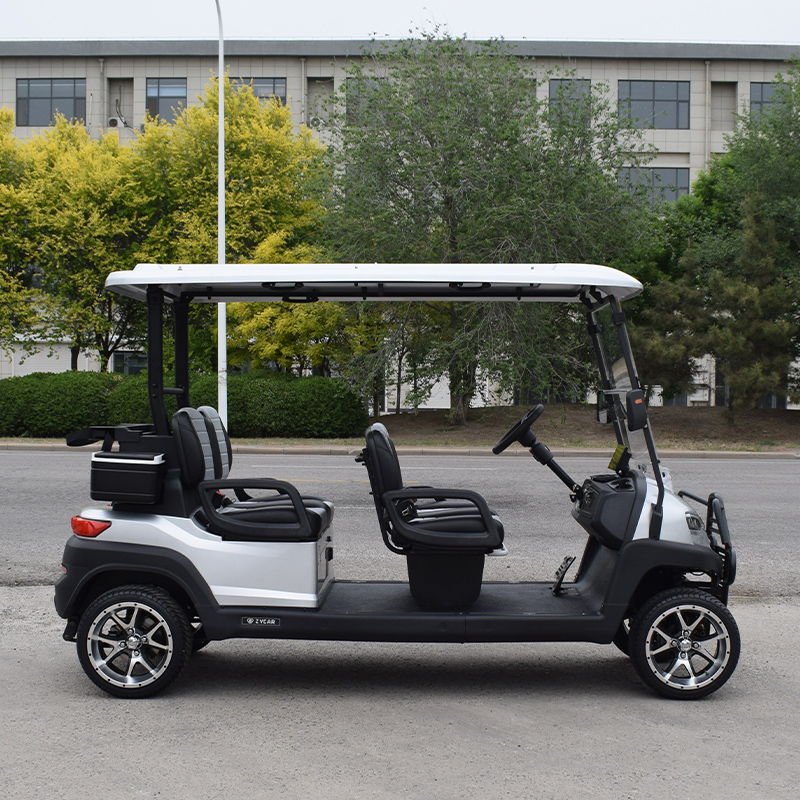

4 seater golf cart Z4 silvery
4 Seats  Golf Cart
ModelZ4
System48V 4KW AC system
Key Components
BatteryTorch brand lead acid battery watered 140 AH 8v 6pcs
MotorZhongyi Brand 4 KW   Asynchronous AC motor, high efficiency and energy saving, stepless speed regulation, fully enclosed aluminum shellSeal, good heat dissipation, high output efficiency, strong overload/climbing ability. Maintenance free.
ControllerAC 48V 400A intelligent controller, climbing ability Strong, anti-rollback on the slope, speed limit on downhill, braking or reverse energy  feedback control to improve the driving mileage of the vehicle
ChargerComputer intelligent car charger, full charge time is about 6-8 hours, with automatic power off protection after full chargeProtection function. Charge input voltage 220V, output 48V/25A, protection grade: IP67.
Performance
Passenger capacity4
Range (loaded) based on flat road at a speed of 20km/h70-90km
Max. speed35kmh
Minimum turning radius4m
Max. climbing ability20%
Break Distance<5M
Cart's weight(with batteries)610 kgs
Dimensions
Overall dimensions:LWH3200×1210×1900mm
front /rear wheel distancefront 880mm/ rear 998mm
Wheelbase2570mm
Detailed Configurations('S' for Standard; 'O' for Option)
Body and Frame
ChassisWelded high yield strength tubular steel with pickling and phosphating electrophoresis processS
Body &RoofInjection molding modeling design separable replacement S
Support framethe front  steel ,the rear  aluminum,Professionally designed and welded by mold opening, the surface is sprayed, the shape is simple, the quality is high, and it is anti-rust.S
SeatsLuxurious seats made of  foamed sponge high-grade imitation leather seat, high resilience and not easy to deform. Front row sliding seats.   Comfort design for different body size.S
DashboardWater transfer printing , carbon fiber style,plastic molding instrument board electric key switch,lockable storage box, cup holder,professional combination meter with turn signal indicator, speed indicator and mileage,forward and Revise indicator. 2xUSB charger port.S
Front steel brush guard
O
Safety BeltsTwo-point belt S
WindshieldFolded Windshield(organic glass)O
9 inch screenWith bluetooth radio entertainment system and reversing cameraO
Ice box(with box holder)
O
Body cover
O
Rain cover
O
Sunshine Curtain4 pcs in a whole cartO
Electric System
Lighting systemAll LED lights:  Front High/Low beam with lens; Front and Rear Flowing water turn signal light; Daytime running lightS
Solar PanelOne piece 200W Solar Panel(1.22m x0.92m)O
Steering and Suspension System
Steering systemDual automotive-style strut and self-adjust rack-and pinion
steering
S
Brake systemDual rear wheel mechanical drum brakes ,self-adjusting with non-asbestos liningsS
Four Wheels Hydraulic Disc Break,front disc brake and rear disc break+electrical magnetic brake  +Aluminum wheel 215/35-12O
Accelerator and break pedalall aluminum new designS
Suspension systemFront mcpherson independent suspension, Spiral spring + cylinder hydraulic shock absorption ; Integral rear axle, leaf spring + cylinder hydraulic shock absorptionS
wheel & TyreAluminum hub 205/50-10S
