4 seater utility golf cart Z2C cerulean
    Publish time 2023-05-30 15:17

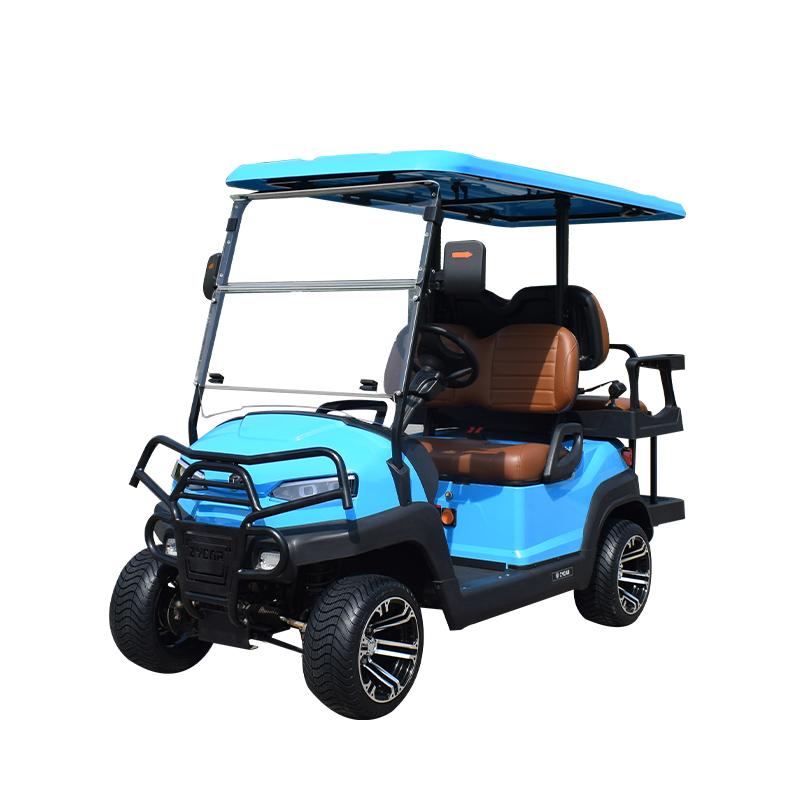

4 seater utility golf cart Z2C cerulean
ModelZ2C
System48V 4 KW AC system
Key Components
BatteryZhongyi Huge capacity deep cycle lead-acid battery  6*8V 140AH
Motor4KW AC motor
ControllerAC Controller (48V 400A)
ChargerOn board Input 220V/110V、output 48V、25A
Performance
Passenger capacity4
Range (loaded) based on flat road at a speed of 20km/h70-90km
Max. speed35kmh
Minimum turning radius4m
Max. climbing ability20%
Break Distance<4M
Cart's weight(with batteries)655 kgs
Dimensions
Overall dimensions:LWH (mm)2860×1210×2065mm
front /rear wheel distance  (mm)front 880mm/ rear 998mm
Wheelbase(mm)1790mm
Detailed Configurations('S' for Standard; 'O' for Option)
Body and Frame
ChassisWelded high yield strength tubular steel with pickling and phosphating electrophoresis processS
Body &RoofInjection molding modeling design separable replacementS
Support framethe front  steel ,the rear  aluminumS
SeatsLuxurious seats made of  sponge&artificial LeatherS
Foldable rear seatwith cup holders and storage box underneath the seatS
DashboardWater transfer printing , carbon fiber style,plastic molding instrument board electric key switch,lockable storage box, cup holder,professional combination meter with turn signal indicator, speed indicator and mileage,forward and Revise indicator. 2xUSB charger port.S
Front steel brush guard
O
Safety BeltsTwo-point belt S
WindshieldFolded Windshield(organic glass)O
Ice box(with box holder)
O
Security lightwith loudspeakerO
Body cover
O
Rain cover
O
Sunshine Curtain 4 pcs in a whole cartO
Electric System
Lighting systemAll LED lights:  Front High/Low beam with lens; Front and Rear Flowing water turn signal light; Daytime running light S
Round LCD digital instrumentCAN communication to the controller,
High accuracy speed meter KPH/MPH, ODO,SOC.
Multi-page display with controller diagnostic information.
S
9 inch screenWith bluetooth radio entertainment system and reversing cameraO
Fridge
O
Solar PanelOne piece 200W Solar Panel(1.22m x0.92m)O
Steering and Suspension System
Steering systemDual automotive-style strut and self-adjust rack-and pinion
steering
S
Brake4 Wheels Hydraulic Disc BreakS
electrical magnetic brakeO
Accelerator and break pedalall aluminum new designS
Suspension systemFront mcpherson independent suspension, Spiral spring + cylinder hydraulic shock absorption ; Integral rear axle, leaf spring + cylinder hydraulic shock absorptionS
wheel & TyreATV tyres Aluminum AT20×10-12S
