8 seater sightseeing cart A8 white
    Publish time 2022-11-17 15:03

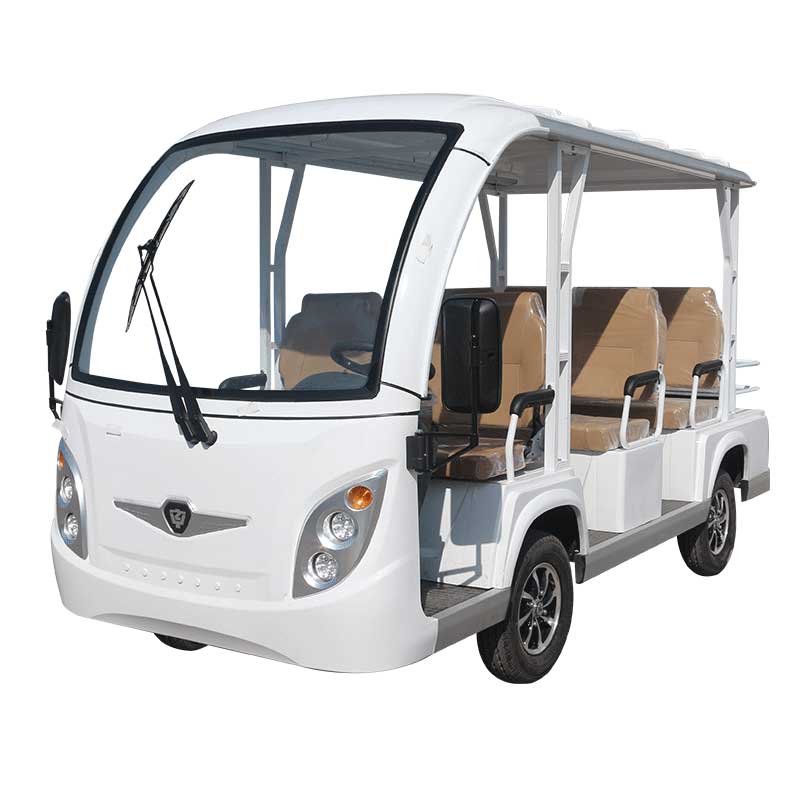

8 seater sightseeing cart A8 white



8 Seater Electric Sightseeing Bus
ModelA8
System48V /5KW AC system
Key Components
BatteryTorch Huge capacity deep cycle lead-acid battery  6V/piece  8 pieces,210Ah
MotorYangz 5KW AC motor
ControllerUSA brand Curtis 1232(400A)
ChargerOn board  72V/30A
Performance
Passenger capacity8
Range (loaded) based on flat road at a speed of 20km/h80-100 km
Max. speed30km/h
Minimum turning radius (m)4.0m
Max. climbing ability (loaded)15%
Max. braking/stopping distancee3.5m(from 20kmh to 0)
Cart's weight(w/batteries)900kgs
Dimensions
Overall dimensions:LWH (mm)3850×1510×2145mm
Min. ground clearance (mm)150mm
Axle distance2000mm
Wheelbase (mm)front 1245mmmm/ rear 1215mm
Body and Frame
FrameAll aluminum frame
BodyMoulded injenction plastic PP
RoofInjection moulded modeling design separable replacement
SeatsSponge&artificial Leather,adjustable driver's seat
DashboardPlastic molding instrument board with volt meter, ammeter, electricity indicator, speedometer,key switch, radio, USB plug, storage box, cup holder
TiresAluminum hub wheel 155R12
EPSElectric Power Steeing is equipped
ChassisHigh strength structural steel
SteeringGear steering+ auto backlash compensation
Braking SystemFront disk +rear drum ,double circuit hydraulic brake+ hand brake
Front AxleMcpherson independent suspension  Spiral spring + cylinder hydraulic shock absorption
Rear AxleStrengthen 16.7 Integral rear axle, Non independent suspension, leaf spring +cylinder hydraulic shock absorption
Detailed Configurations: ("S" stands for Standard configuration and "O" stands for Optional configuration)
Body And Frame
WindshieldLaminated glass with wiperS
Seats cover
O
Safety Belts
O
Security lightwith loud speakerO
Trailer Hook
O
Body cover
O
Sunshine Curtain
O
rain cover
O
Fans
O
Reviewer mirror outside
S
Central mirror inside
O
Fire extinguisher
O
Electric System
Radio with USB
S
Combination Meter
S
Solar Panel
O
LED Front Light
S
Air ConditionerWith cool and warm functionO
