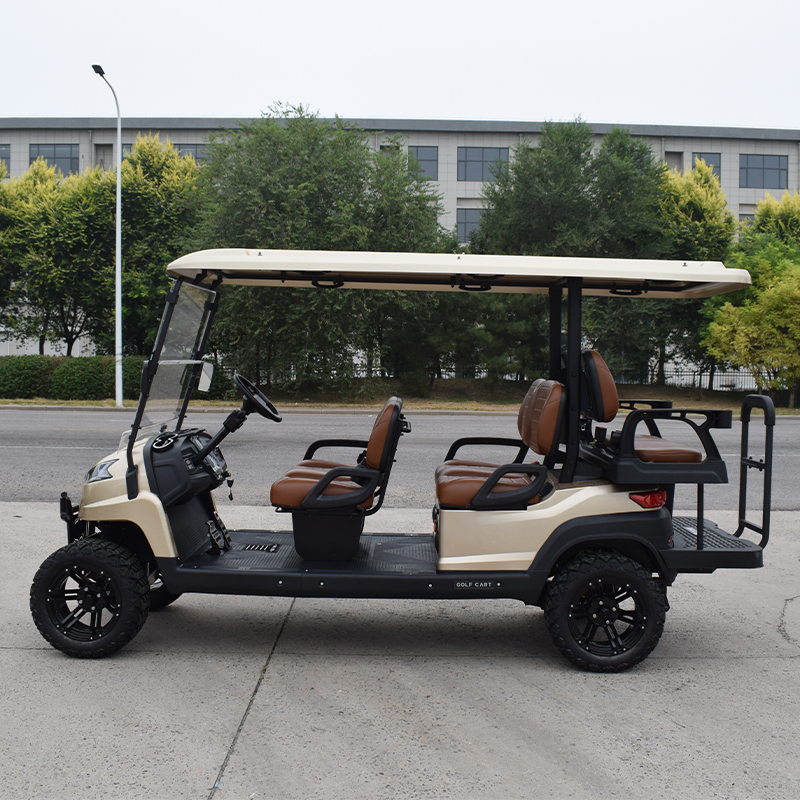

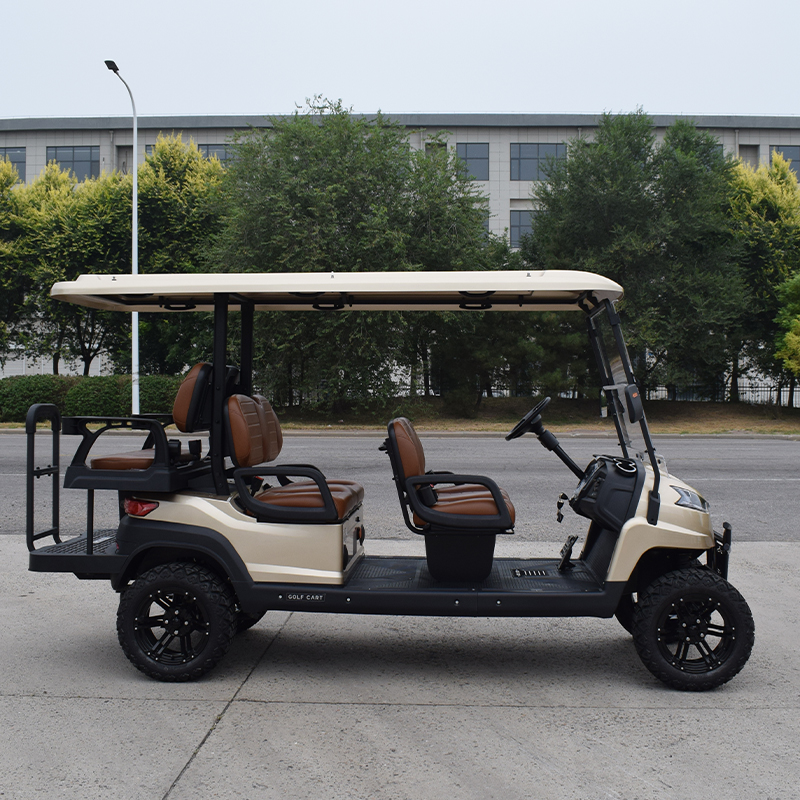

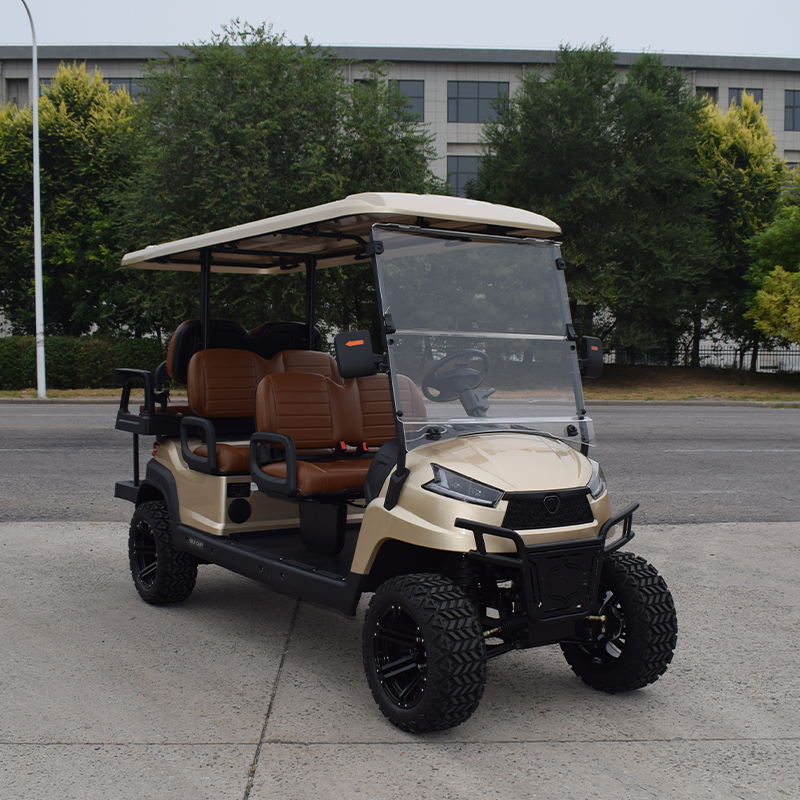

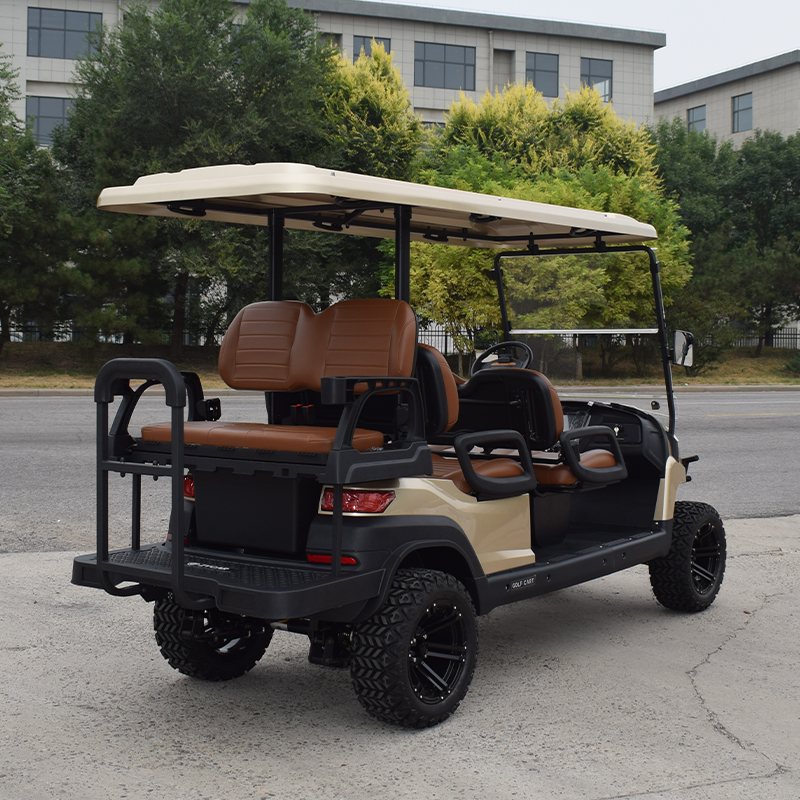

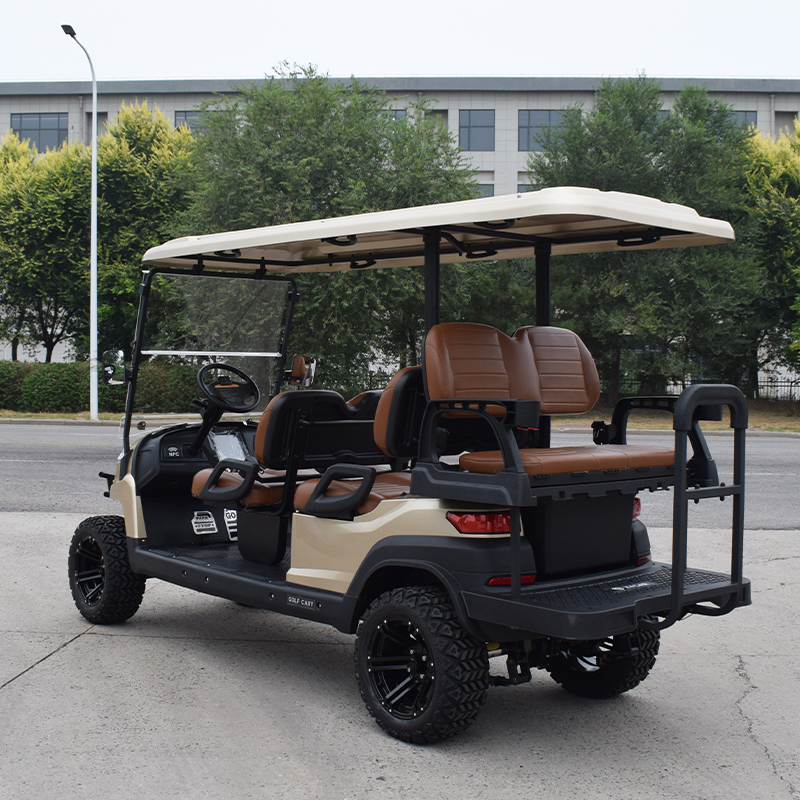

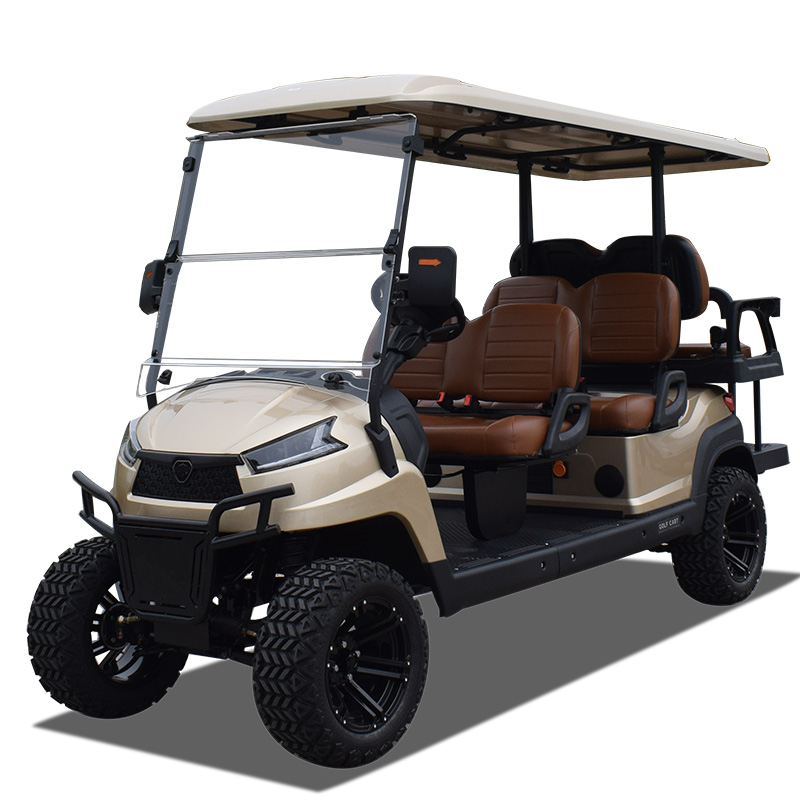

| 4 + 2 Seats Golf Cart with foldable rear seat |
| Model | R4C |
| System | 48V 5KW AC system |
| Key Components |
| Battery | Zhongyi brand deep cycle lead-acid battery 6*8V 140AH |
| Motor | Zhongyi Brand 5KW AC motor |
| Controller | Enpower 3818 AC Controller |
| Charger | on board 48V/25A |
| Performance |
| Passenger capacity | 6 |
| Range (loaded) based on flat road at a speed of 20km/h | 60-80km |
| Max. speed | 24kmh |
| Minimum turning radius | 5.0m |
| Max. climbing ability | 15% |
| Brake Distance | 4M |
| Cart's weight(with batteries) | 670 kgs |
| Dimensions |
| Overall dimensions:LWH (mm) | 3720*1210*1945mm |
| Min. ground clearance | 105mm |
| front /rear wheel distance | front 880mm/ rear 998mm |
| Wheelbase(mm) | 2530mm |
| Detailed Configurations('S' for Standard; 'O' for Option) |
| Body and Frame |
| Chassis | Welded high yield strength tubular steel with pickling and phosphating electrophoresis process | S |
| Body &Roof | Injection molding modeling design separable replacement | S |
| Support frame | the front steel ,the rear aluminum | S |
| Seats | Sponge&artificial Leather | S |
| Foldable rear seat | with storage box and cup holders | S |
| Dashboard | Plastic molding instrument board electric key switch,lockable storage box, cup holder,mobile holders,turn signal indicator, speed indicator and mileage,forward and Revise indicator. 2USB charger port. | S |
| Safety Belts | Two-point belt | S |
| Slidable front seat | give more space to driver or the man sit on the 2nd row seat,more space to their feet,feel more comfortable | S |
| Windshield | Folded Windshield(organic glass) | S |
| Ice box(with box holder) |
| O |
| Seats cover |
| O |
| Body cover |
| O |
| Rain cover |
| O |
| Electric System |
| Lighting system | Automotive level lighting combination design, high-end, long-lasting LED lights, including daytime driving lights, high/low beam with angel eyes head lights, drive/break tail lights, and front/rear flowing water turning lights.light logo. | S |
| Touching meter screen | 9.7inch touching screen in the middle of dashboard:
Reversing camera,CAN communication to the controller, High accuracy speed meter KPH/MPH, ODO,SOC. Multi-page display with controller diagnostic information,meanwhile can switch on/off auto head light/ECO/Mountain model ect.
Entertainment function: radio,bluetooth phone/music,movie. | S |
| Steering and Suspension System |
| Steering system | Dual automotive-style strut and self-adjust rack-and pinion
steering | S |
| Brake system | Dual rear wheel mechanical drum brakes ,self-adjusting with non-asbestos linings | S |
4 wheels disc brake + electrical magnetic brake
wheel & Tyre will be aluminum hub 215/35-12 | O |
| Accelerator | electric accelerator | S |
| Suspension system | Front mcpherson independent suspension, Spiral spring + cylinder hydraulic shock absorption ; Integral rear axle,leaf spring + cylinder hydraulic shock absorption | S |
| wheel & Tyre | Aluminum wheels 205/50-10 | S |
