New Arrival 6 seater golf cart E4C royal blue
    Publish time 2024-01-25 09:48

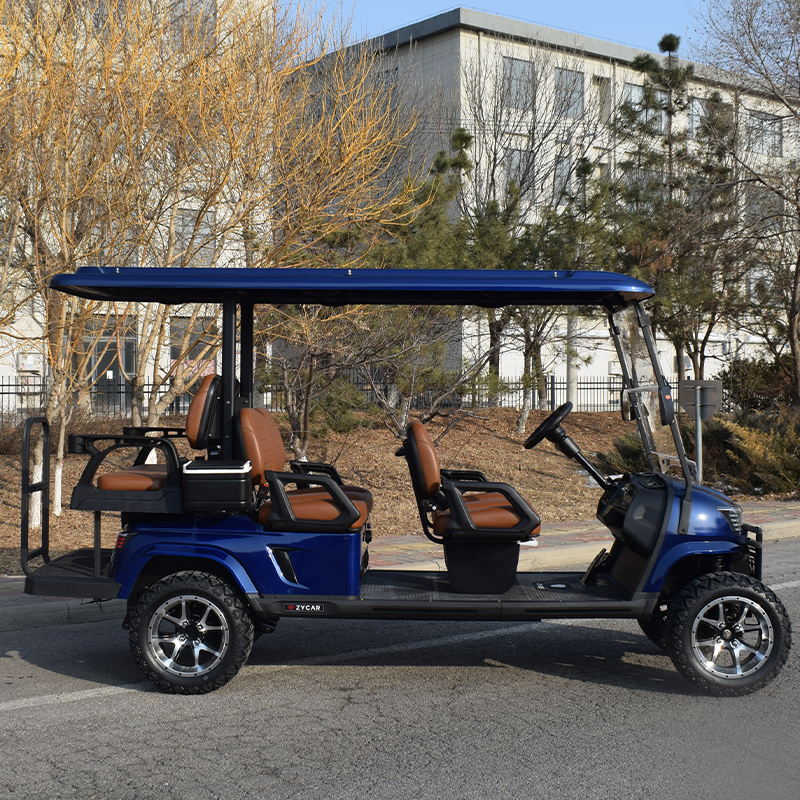

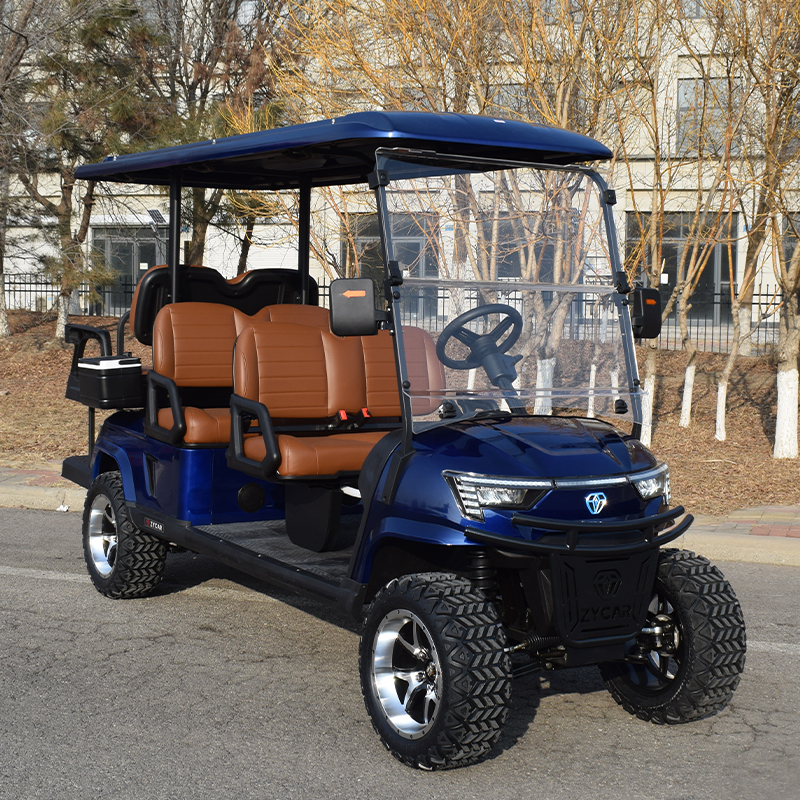

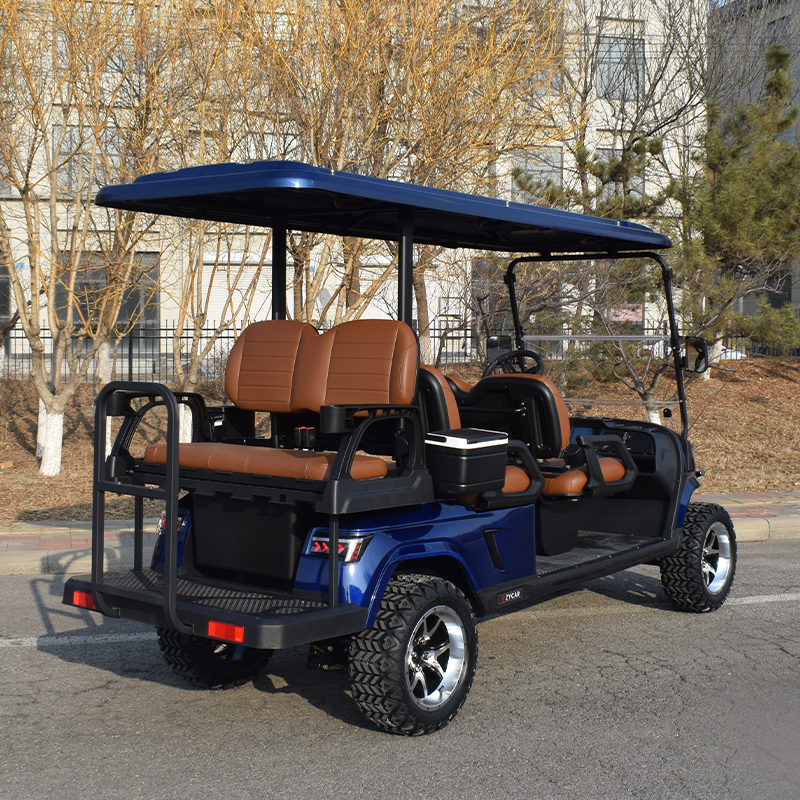

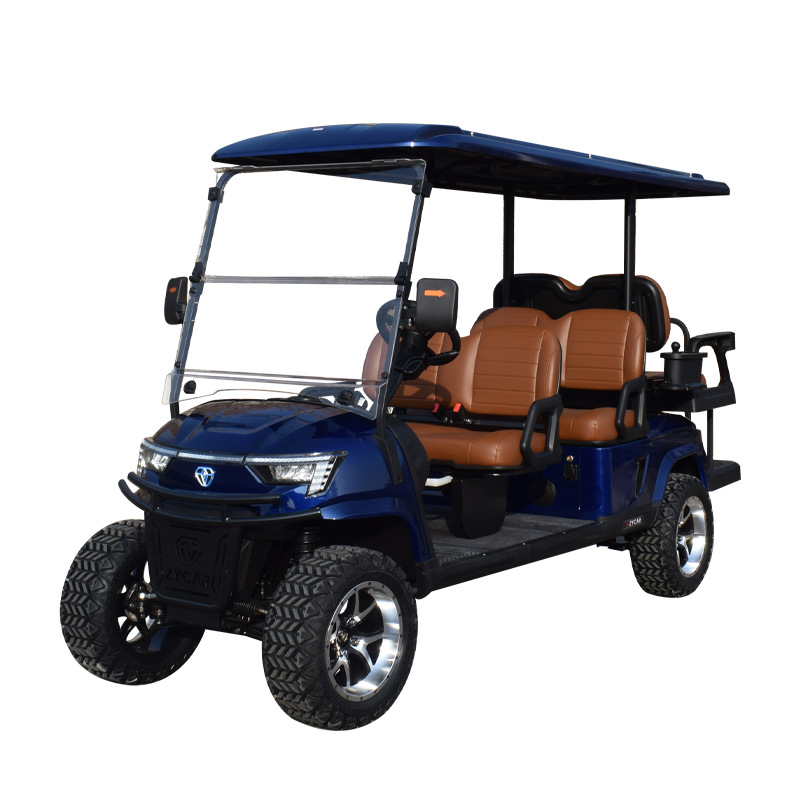

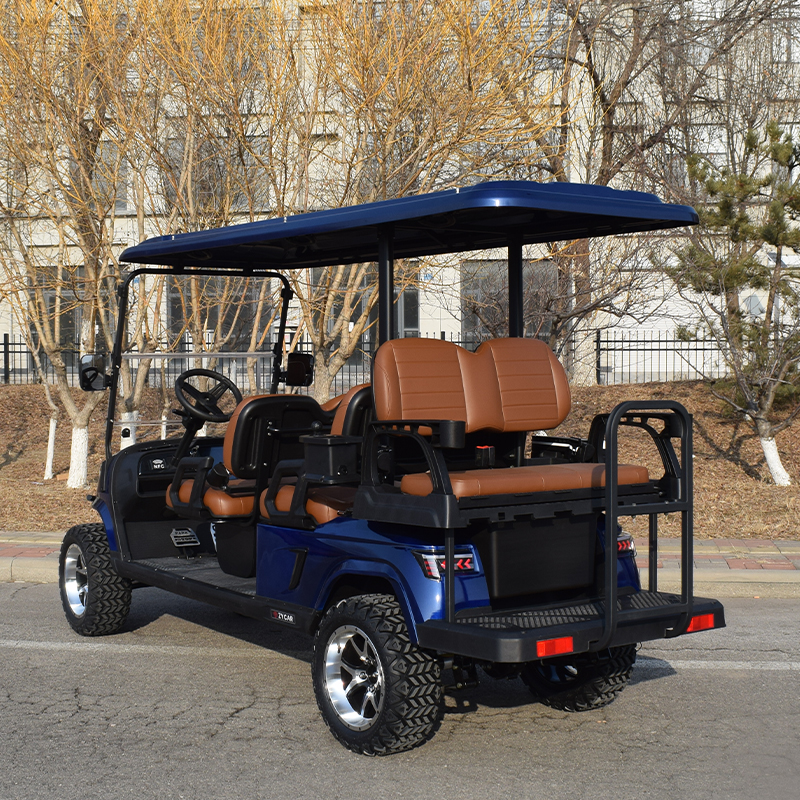

New Arrival 6 seater golf cart E4C royal blue

6 Seats Utilty Golf Cart
System48V 4KW AC system
Key Components
BatteryMaintenance Free lead acid Battery  6*8V 150AHlithium battery 48v 105ah
MotorZhongyi Brand 4KW AC motor
ControllerEnpower 3818 AC  ControllerA5 AC controller
Chargeron board 48V/25A
Passenger capacity4
Range (loaded) based on flat road at a speed of 20km/h60-80km
Max. speed24kmh
Minimum turning radius4m
Max. climbing ability15%
Brake Distance4M
Cart's weight(with batteries)735 kgs
Overall dimensions:LWH (mm)3705*1210*1980mm
Min. ground clearance105mm
front /rear wheel distancefront 880mm/ rear 998mm
Detailed Configurations('S' for Standard; 'O' for Option)
Body and Frame
ChassisWelded high yield strength tubular steel with pickling and phosphating electrophoresis processS
Body &RoofInjection molding modeling design separable replacementS
Support framethe front  steel ,the rear  aluminumS
SeatsSponge&artificial LeatherS
DashboardPlastic molding instrument board electric key switch,lockable storage box, cup holder,mobile holders,forward and Revise switch,emergency flashers switch and 9.7inch touching screen to show battery/ speed/controller information and functions swtiches. 2USB charger ports.NFC key.S
Safety BeltsTwo-point beltS
WindshieldFolded Windshield(organic glass)S
Floor matone piece shaped floor matS
Seats cover
Ice box(with box holder)
Golf ball washer
Sand bottle
Aluminum Brush guardthis guard is a new shapeO
Caddy standing plate
Body cover
Rain cover
Electric System
Lighting systemAutomotive level lighting combination design, high-end, long-lasting LED lights, including daytime driving lights, high/low beam with angel eyes head lights, drive/break tail lights, and front/rear flowing water turning lights and Emergency Flashers.S
Touching meter screen9.7inch touching screen in the middle of dashboard:
Reversing camera,CAN communication to the controller, High accuracy speed meter KPH/MPH, ODO,SOC.  Multi-page display with controller diagnostic information,meanwhile can switch on/off auto head light/ECO/Mountain model ect.
Entertainment function: radio,bluetooth phone/music,movie.
Side guard with light&
Side shinning light

Steering and Suspension System
Steering systemDual automotive-style strut and self-adjust rack-and pinion
Brake system4 wheels disc brake + electrical magnetic brakeS
Acceleratorelectric aluminum acceleratorS
Suspension systemFront mcpherson independent suspension, Spiral spring + cylinder hydraulic shock absorption ; Integral rear axle,leaf spring + cylinder hydraulic shock absorptionS
wheel & TyreAluminum hub 215/35-12S
