2 seater golf cart Z2 silvery
    Publish time 2022-11-14 13:49

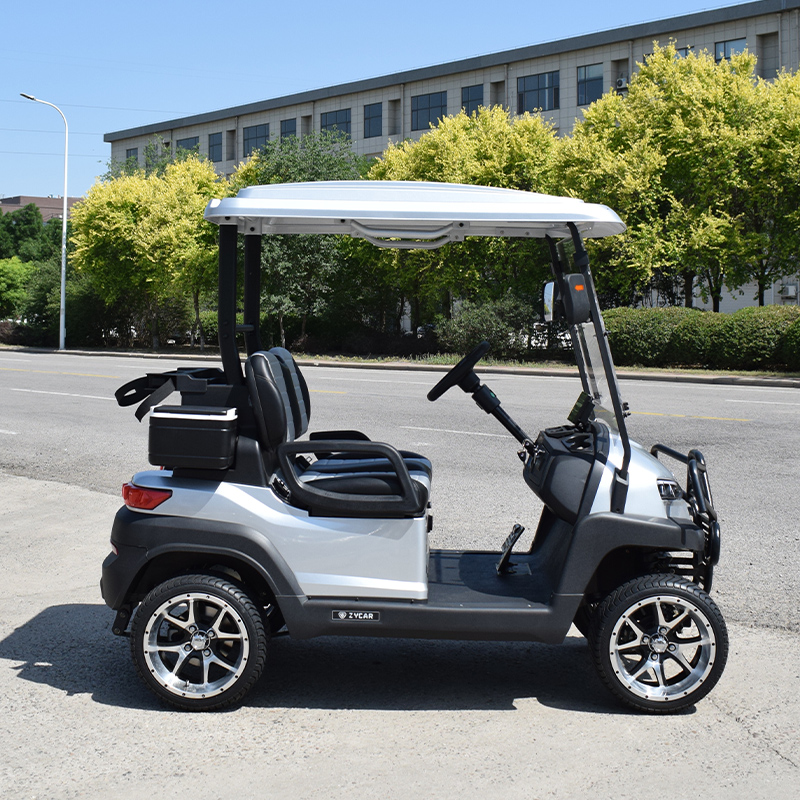

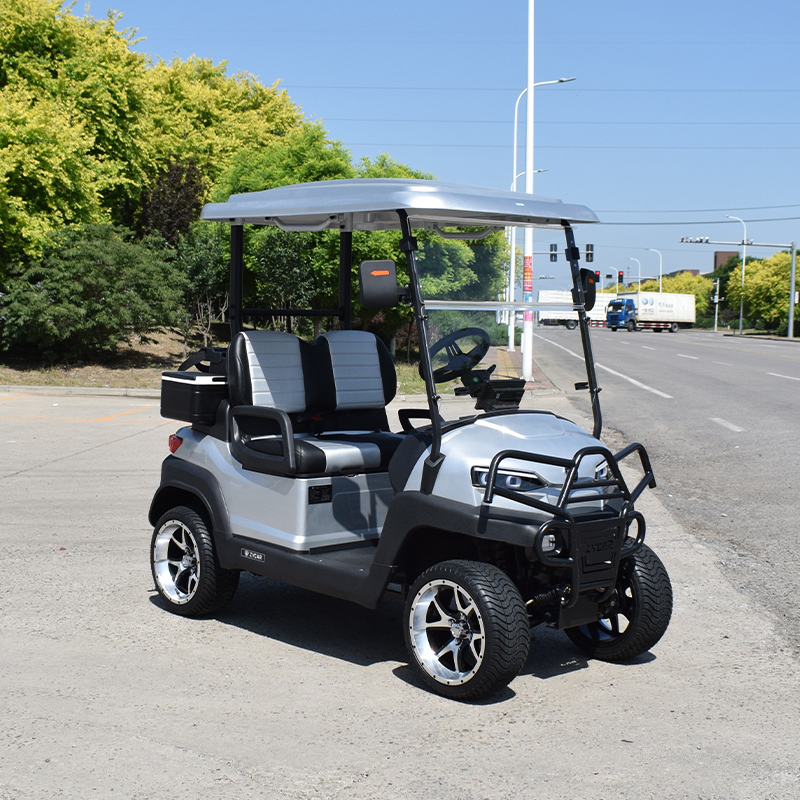

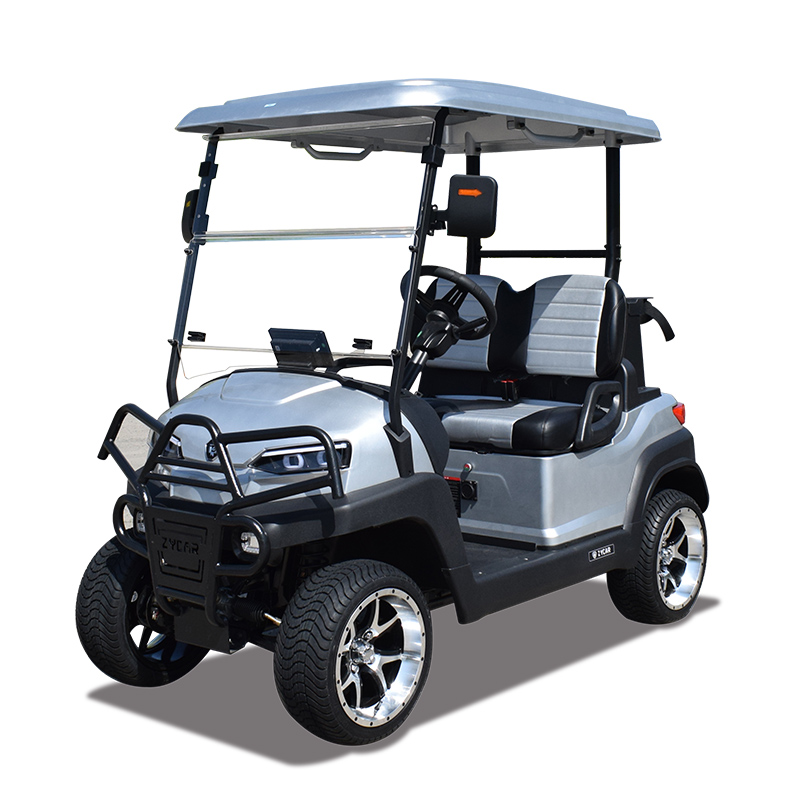

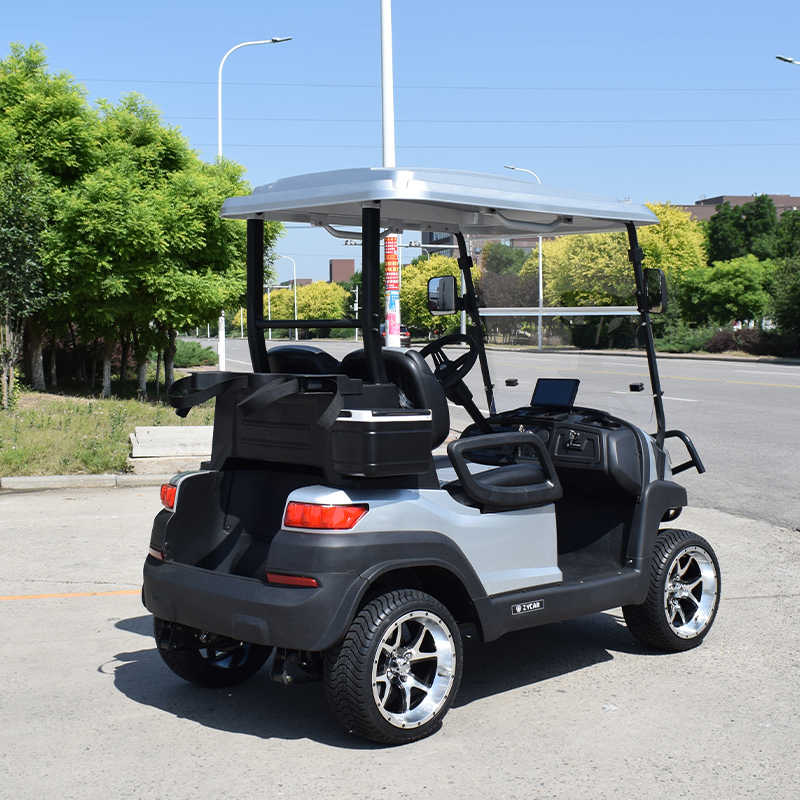

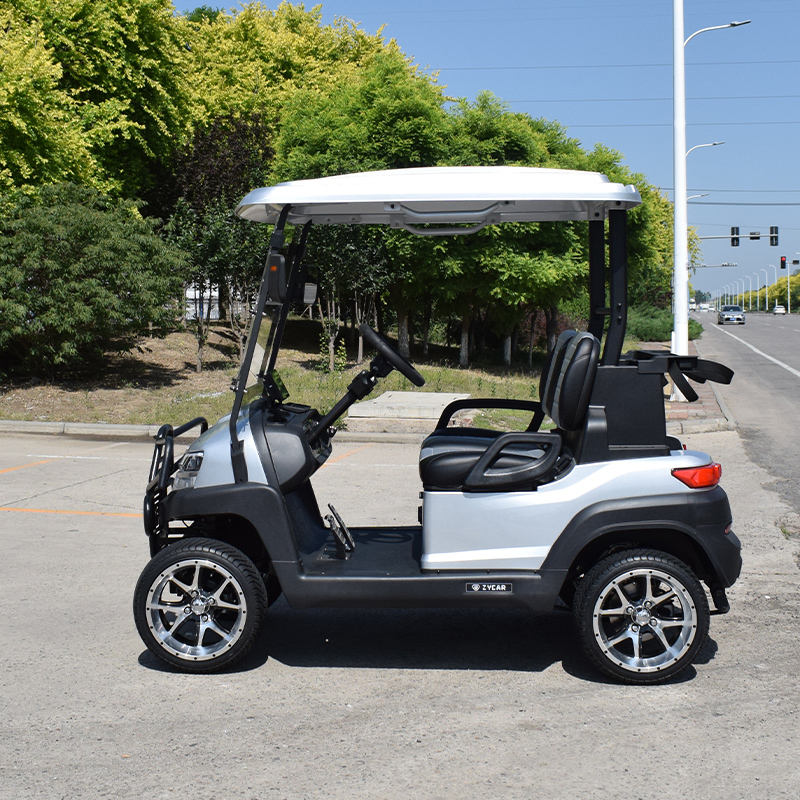

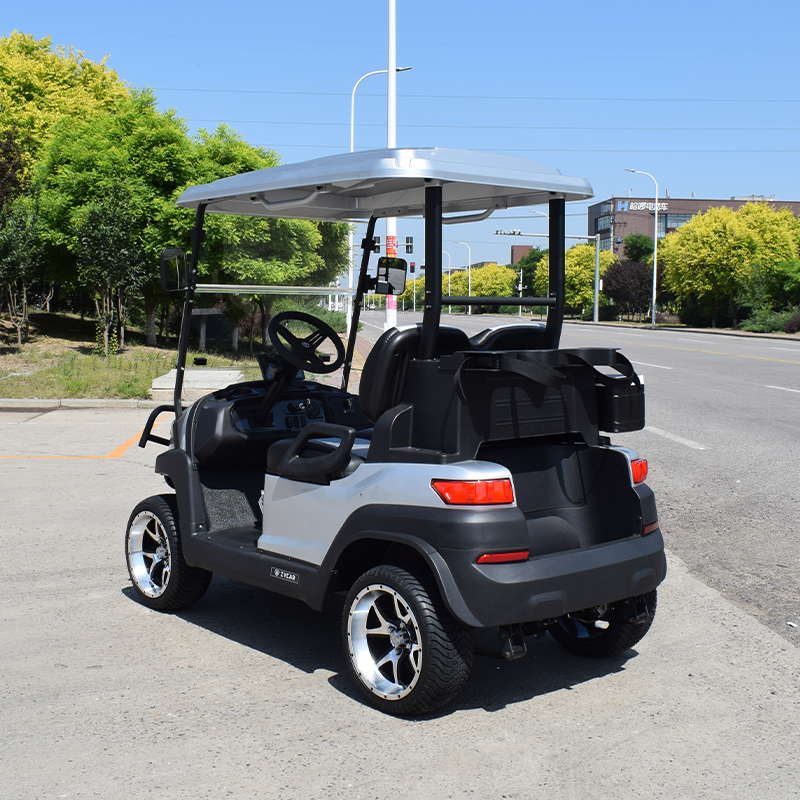

2 seater golf cart Z2 silvery
2 Seats Utilty Golf Cart
ModelZ2
System48V 4KW AC system
Key Components
BatteryZhongyi Huge capacity deep cycle lead-acid battery  6*8V 140AH
Motor4 KW   Asynchronous AC motor, high efficiency and energy saving, stepless speed regulation, fully enclosed aluminum shellSeal, good heat dissipation, high output efficiency, strong overload/climbing ability. Maintenance free.
ControllerAC 48V 400A intelligent controller, climbing ability
Strong, anti-rollback on the slope, speed limit on downhill, braking or reverse energy  feedback control to improve the driving mileage of the vehicle
ChargerComputer intelligent car charger, full charge time is about 6-8 hours, with automatic power off protection after full chargeProtection function. Charge input voltage 220V, output 48V/25A, protection grade: IP67.
Performance
Passenger capacity2
Max. speed28kmh
Range (loaded) based on flat road at a speed of 20km/h70-90km
Minimum turning radius2.5m
Max. climbing ability20%
Break Distance<4M
Cart's weight(with batteries)530kgs
Dimensions
Overall dimensions:LWH (mm)2370×1210×1950mm
front /rear wheel distance  (mm)front 880mm/ rear 998mm
Wheelbase(mm)1740mm
Detailed Configurations('S' for Standard; 'O' for Option)
Body and Frame
ChassisWelded high yield strength tubular steel with pickling and phosphating electrophoresis processS
BraketProfessionally designed and welded by mold opening, the surface is sprayed, the shape is simple, the quality is high, and it is anti-rust.S
Body &RoofInjection molding of automotive engineering materials is light in weight and color not easy to fade.S
Support framethe front  steel ,the rear  aluminumS
SeatsLuxurious seats made of  foamed sponge high-grade imitation leather seat, high resilience and not easy to deform.S
DashboardPlastic molding instrument board electric key switch,lockable storage box, cup holder,mobile holders,turn signal indicator, speed indicator and mileage,forward and Revise indicator. 2USB charger port.S
Safety BeltsTwo-point beltS
WindshieldTempered glass with wiperS
Folded Windshield(organic glass)O
Rain cover
O
Ice box(with box holder)
O
Golf ball washer
O
Sand bottle
O
Caddy standy
O
Sunshine Curtain4 pcs in a whole cartO
Electric System
Lighting systemAutomotive level lighting combination design, high-end, long-lasting LED lights, including daytime driving lights, high/low beam with angel eyes head lights, drive/break tail lights, and front/rear flowing water turning lights.S
Round LCD digital instrumentCAN communication to the controller,
High accuracy speed meter KPH/MPH, ODO,SOC.
Multi-page display with controller diagnostic information.
S
Side mirrors with arrow style turning light
S
9 inch touch screen with reverse camera functionRadio, Music, Movie,and reverse image  cameraO
Solar PanelOne piece 200W Solar Panel(1.22m x0.92m)O
Steering and Suspension System
Steering systemDual automotive-style strut and self-adjust rack-and pinion
steering
S
Brake systemDual rear wheel mechanical drum brakes ,self-adjusting with non-asbestos liningsS
4 wheels hydraulic disc brake + electrical magnetic brake
wheel & Tyre will be aluminum hub 215/35-12
O
Acceleratorelectric acceleratorS
Suspension systemFront mcpherson independent suspension, Spiral spring + cylinder hydraulic shock absorption ; Integral rear axle,leaf spring + cylinder hydraulic shock absorptionS
wheel & TyreAluminum hub 205/50-10S
