17 seater sightseeing cart A17 green
    Publish time 2022-11-25 10:48

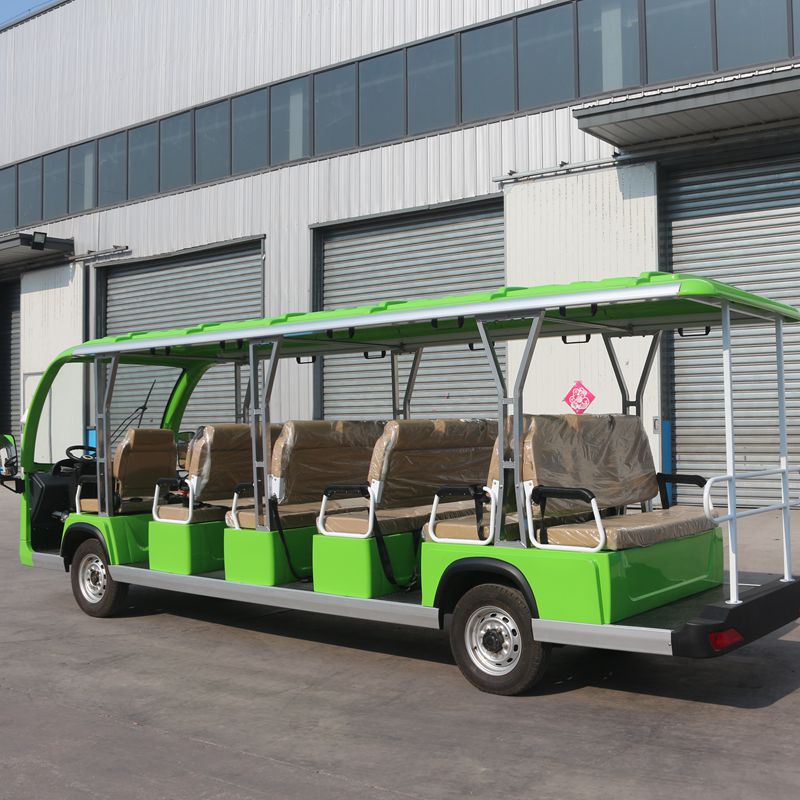

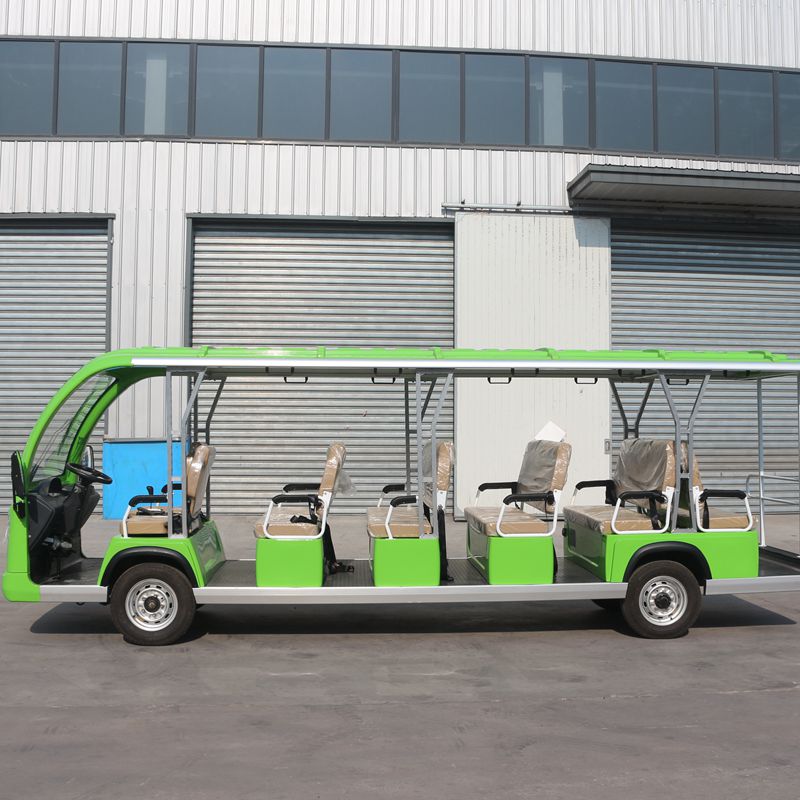

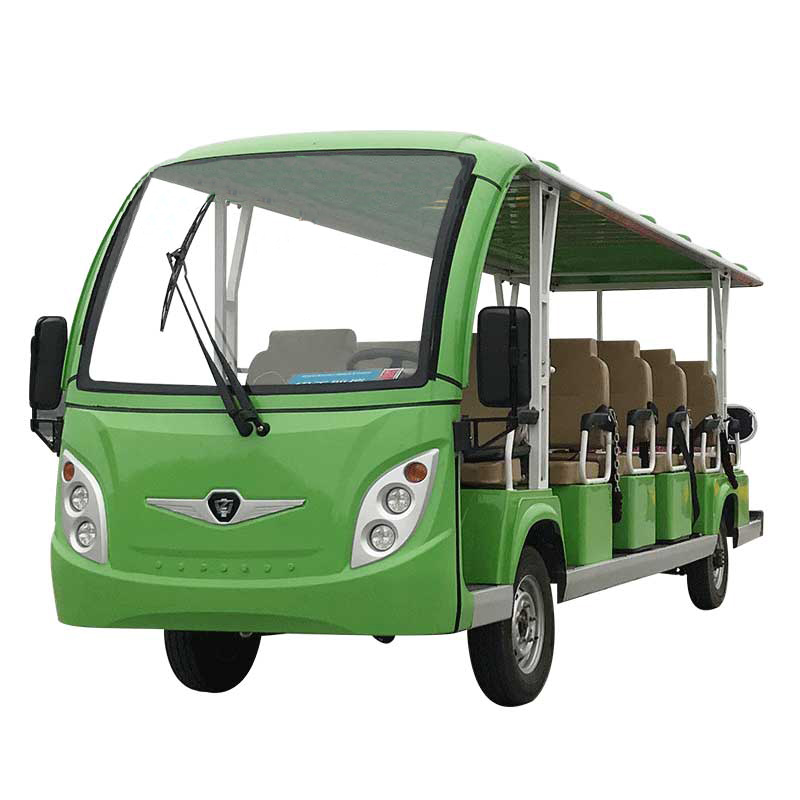

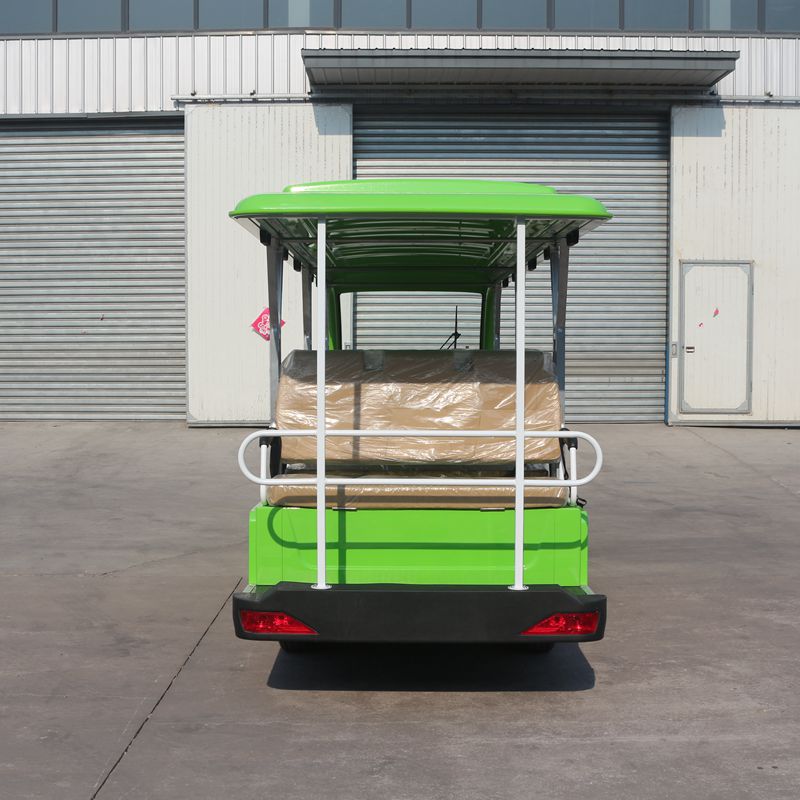

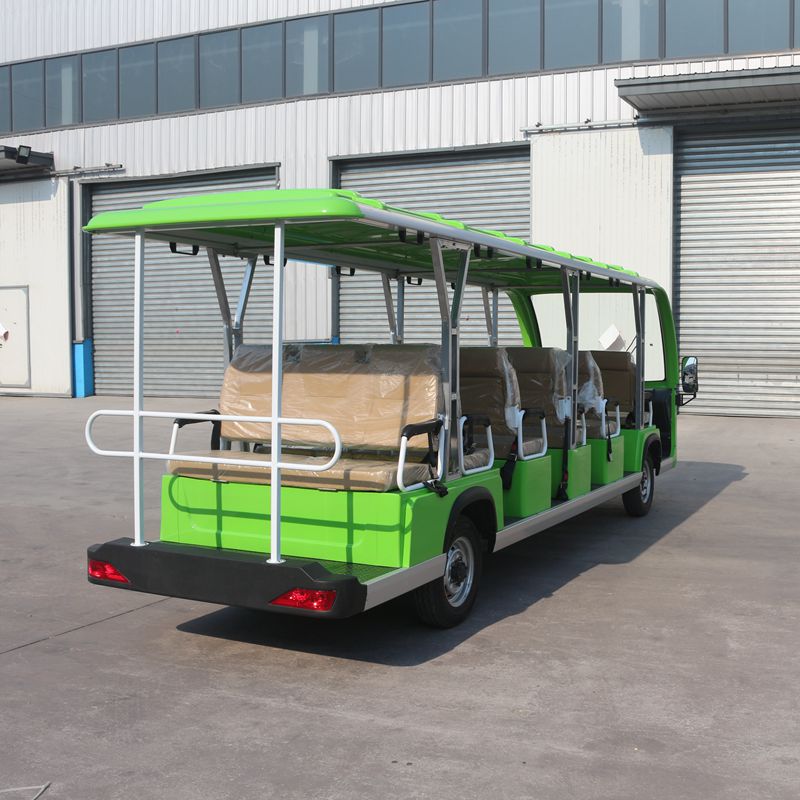

17 seater sightseeing cart A17 green
17 Seater Electric Sightseeing Bus
ModelA17+
System72V /7.5KW AC system

BatteryHuge capacity deep cycle lead-acid battery  6V/piece  12 pieces,230Ah
Motor7.5KW AC motor
ControllerAC 7.5kw 400A
ChargerOn board  72V/30A
Performance
Passenger capacity17
Range (loaded) based on flat road at a speed of 20km/h110-120 km
Max. speed30km/h
Minimum turning radius (m)5.5m
Max. climbing ability (loaded)15%
Max. braking/stopping distancee3.3m(from 20kmh to 0)
Cart's weight(w/batteries)1310kgs
Dimensions
Overall dimensions:LWH (mm)5980×1510×2135mm
Min. ground clearance (mm)130mm
Axle distance3665mm
Wheelbase (mm)front 1240mmmm/ rear 1220mm
Body and Frame
FrameAll aluminum frame
BodyMoulded injenction plastic PP
RoofInjection moulded modeling design separable replacement
SeatsSponge&artificial Leather,adjustable driver's seat
DashboardPlastic molding instrument board with volt meter, ammeter, electricity indicator, speedometer,key switch, radio, USB plug, storage box, cup holder
TiresRadial tires for auto  steel hub 165R13
EPSElectric Power Steeing is equipped
ChassisHigh strength structural steel
SteeringGear steering+ auto backlash compensation
Braking SystemFront disk +rear drum ,double circuit hydraulic brake+ hand brake
Front AxleMcpherson independent suspension  Spiral spring + cylinder hydraulic shock absorption
Rear AxleStrengthen 16.7 Integral rear axle, Non independent suspension, leaf spring +cylinder hydraulic shock absorption
Detailed Configurations: ("S" stands for Standard configuration and "O" stands for Optional configuration)
Body And Frame
WindshieldLaminated glass with wiperS
Seats cover
O
Safety Belts
O
Security lightwith loud speakerO
Trailer Hook
O
Body cover
O
Sunshine Curtain
O
rain cover
O
Heater
O
Reviewer mirror outside
S
Central mirror inside
O
Fire extinguisher
O
Electric System
Radio with USB
S
9 inch touch screenwith reverse cameraO
Combination Meter
S
Solar PanelOne piece 200W Solar Panel(1.22m x0.92m),the max is 3 piecesO
LED Front Light
S
Air ConditionerWith cool and warm functionO
