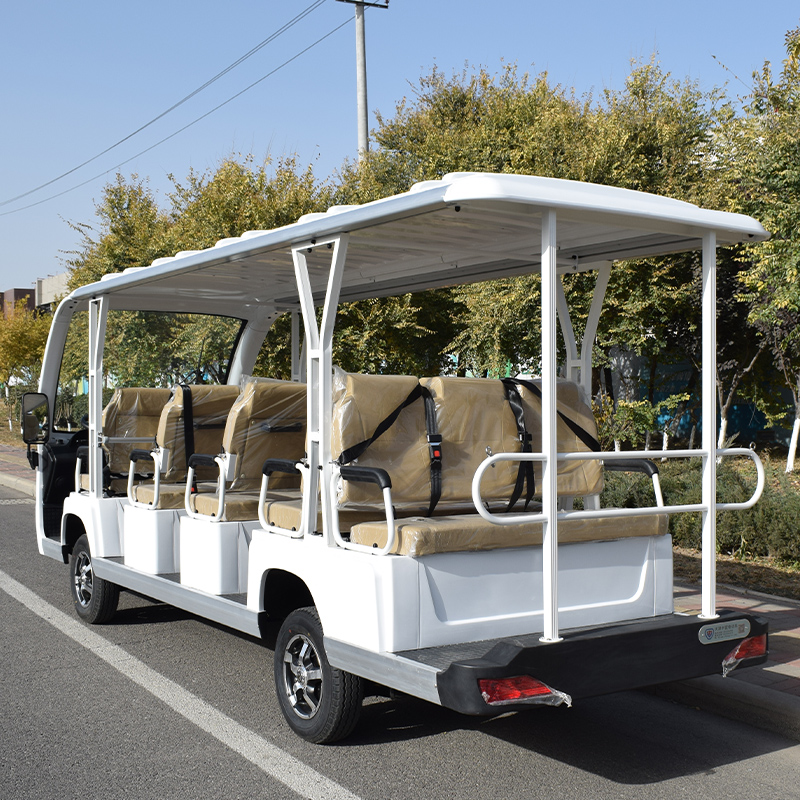

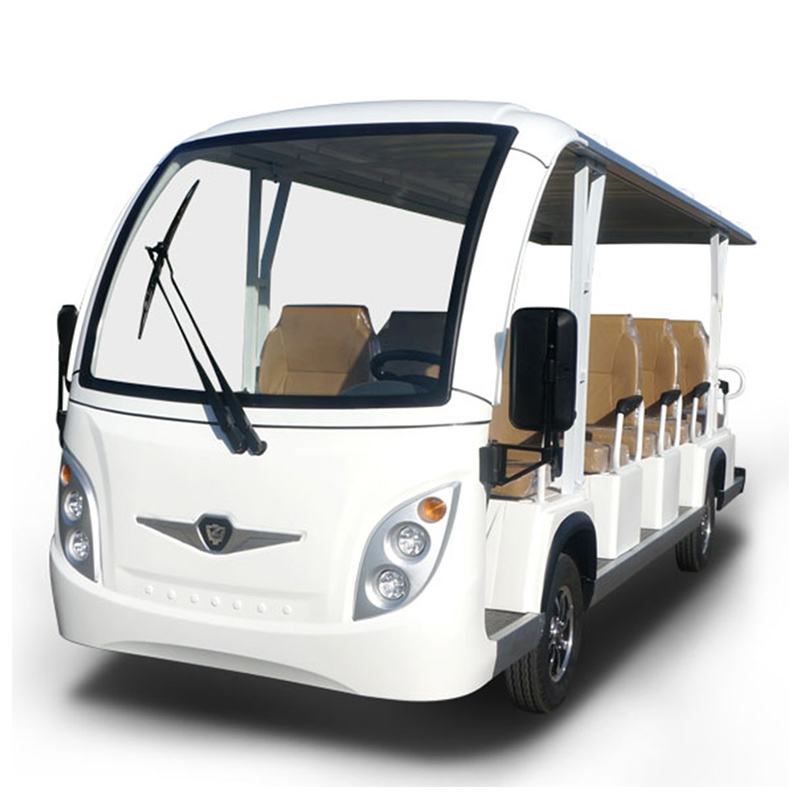

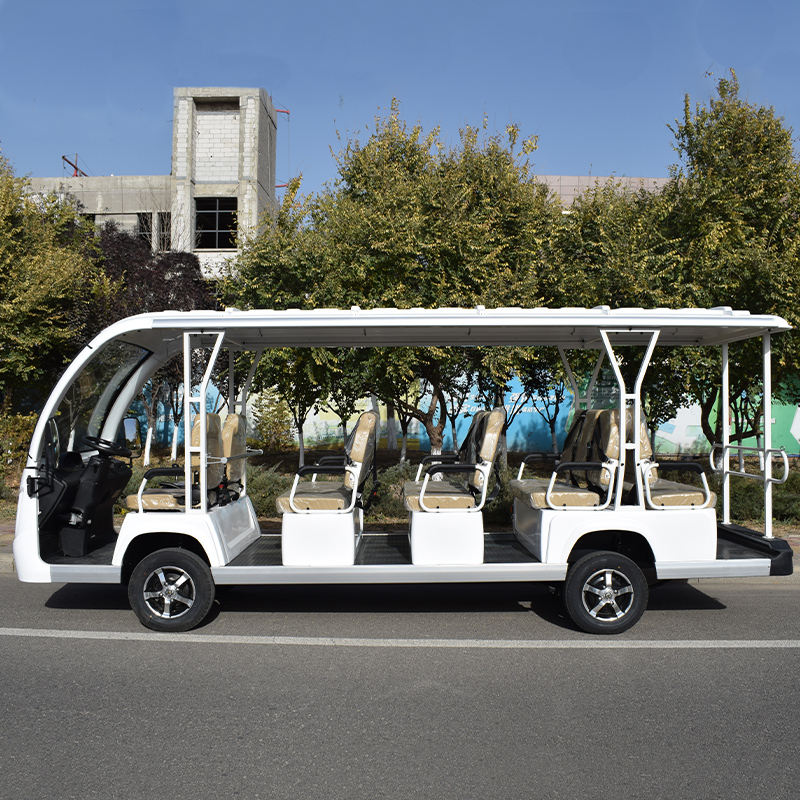

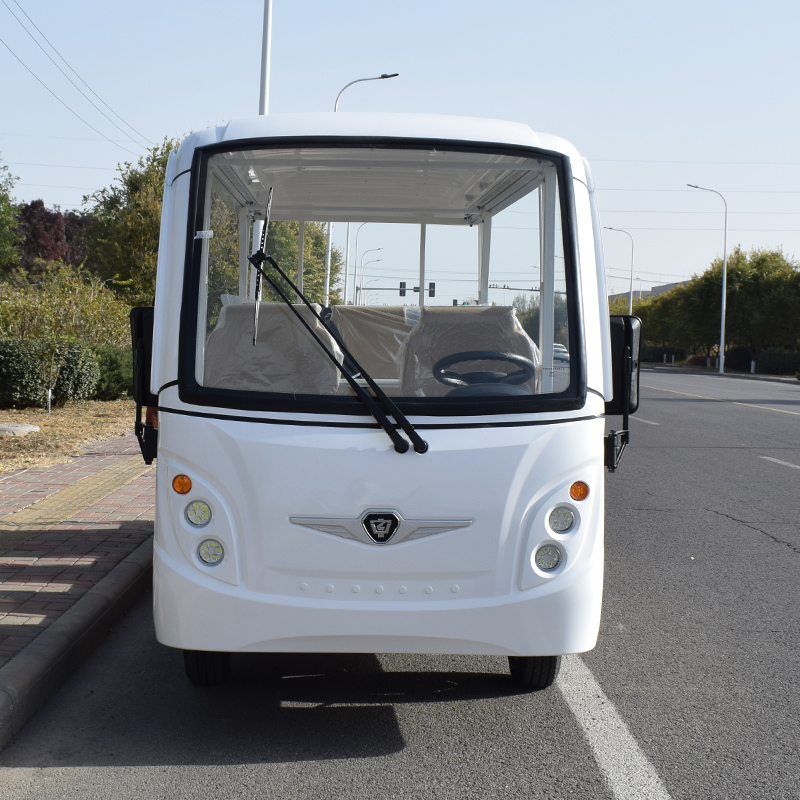

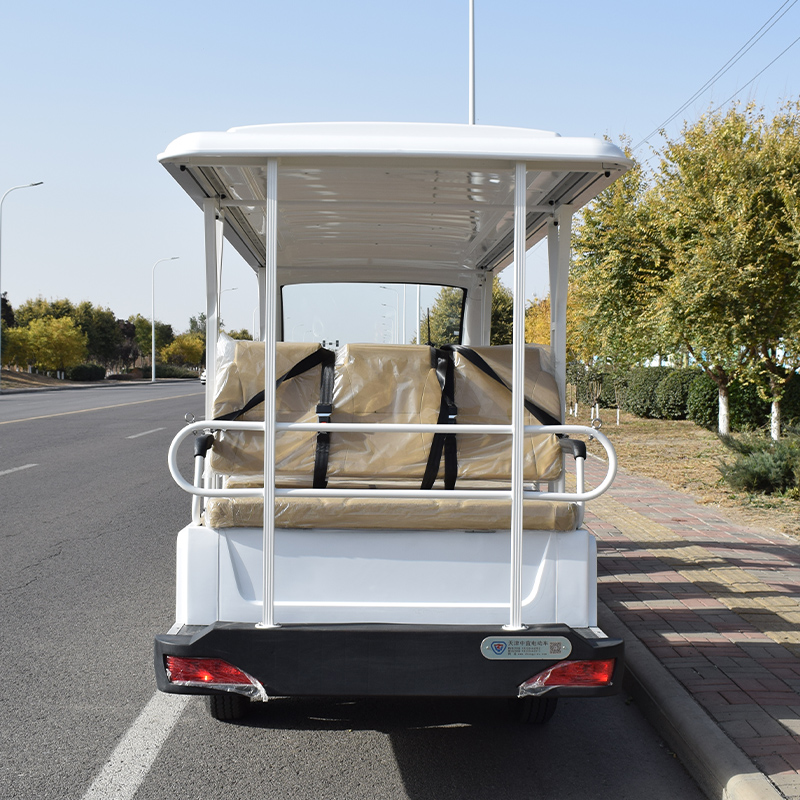

| 14 Seater Electric Sightseeing Bus |
| Model | A14 |
| System | 48V /5KW AC system |
| Unit price(FOB Tianjin) |
|
| Key Components |
| Battery | Huge capacity deep cycle lead-acid battery 6V/piece 8 pieces,210Ah |
| Motor | 5KW AC motor |
| Controller | USA brand Curtis 1232(400A) |
| Charger | On board 72V/30A |
| Performance |
| Passenger capacity | 14 |
| Range (loaded) based on flat road at a speed of 20km/h | 80-100 km |
| Max. speed | 30km/h |
| Minimum turning radius (m) | 5.4m |
| Max. climbing ability (loaded) | 15% |
| Max. braking/stopping distancee | 3.3m(from 20kmh to 0) |
| Cart's weight(w/batteries) | 1070kgs |
| Dimensions |
| Overall dimensions:LWH (mm) | 5180×1510×2125mm |
| Min. ground clearance (mm) | 140mm |
| Axle distance | 2840mm |
| Wheelbase (mm) | front 1240mmmm/ rear 1220mm |
| Body and Frame |
| Frame | All aluminum frame |
| Body | Moulded injenction plastic PP |
| Roof | Injection moulded modeling design separable replacement |
| Seats | Sponge&artificial Leather,adjustable driver's seat |
| Dashboard | Plastic molding instrument board with volt meter, ammeter, electricity indicator, speedometer,key switch, radio, USB plug, storage box, cup holder |
| Tires | Aluminum hub wheel 155R12C |
| EPS | Electric Power Steeing is equipped |
| Chassis | High strength structural steel |
| Steering | Gear steering+ auto backlash compensation |
| Braking System | Front disk +rear drum ,double circuit hydraulic brake+ hand brake |
| Front Axle | Mcpherson independent suspension Spiral spring + cylinder hydraulic shock absorption |
| Rear Axle | Strengthen 16.7 Integral rear axle, Non independent suspension, leaf spring +cylinder hydraulic shock absorption |
| Detailed Configurations: ("S" stands for Standard configuration and "O" stands for Optional configuration） |
| Body And Frame |
| Windshield | Laminated glass with wiper | S |
| Seats cover |
| O |
| Safety Belts |
| O |
| Security light | with loud speaker | O |
| Trailer Hook |
| O |
| Body cover |
| O |
| Sunshine Curtain |
| O |
| rain cover |
| O |
| Heater |
| O |
| Fans |
| O |
| Reviewer mirror outside |
| S |
| Central mirror inside |
| O |
| Fire extinguisher |
| O |
| Electric System |
| Radio with USB |
| S |
| 9 inch touch screen | with reverse camera | O |
| Combination Meter |
| S |
| Solar Panel | One piece 200W Solar Panel(1.22m x0.92m),the max is 3 pieces | O |
| LED Front Light |
| S |
| Air Conditioner | With cool and warm function | O |
| Refrigerator |
| O |
| Megaphone | for speaker inside | O |
